For Sale - UM - 18077 - Engel VC 330 / 120 Tech Pro Injection Moulding Machine

Specification

Reference Numbers

UM - 18077

Product

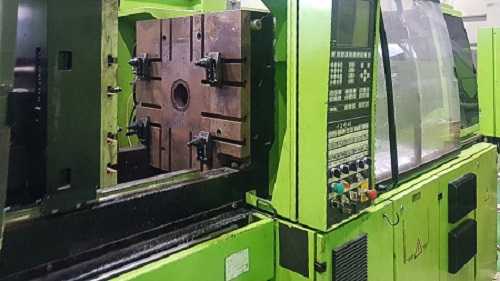

Engel VC 330 / 120 Tech Pro Injection Moulding Machine

Year Of Manufacture

2003

Location

Europe

Product Details

Screw diameter:- 35 mm
Shot weight max:- 142 g
Injection rate:- 151 cm³/s
Injection pressure:- 2.180 bar
Injection volume:- 154 cm³
Screw speed:- 400 rpm
Screw L/D ratio:- 20
Nozzle force max:- 40 mm / kN
Nozzle stroke max:- 130 mm
Clamping force:- 1.200 kN
Mould opening stroke max:- 500 mm
Mould height min:- 300 mm
Daylight between platens max:- 800 mm
Platen size h:- 740 mm
Platen size v:-740 mm
Ejector force:- 40 kN
Oil tank capacity:- 300 l
Operating hours:- 58.382
