For Sale - UM - 17826 - Injection Molding Machines

Specification

Reference Numbers

UM - 17826

Product

Injection Molding Machines

Year Of Manufacture

1998

Location

Europe

Product Details

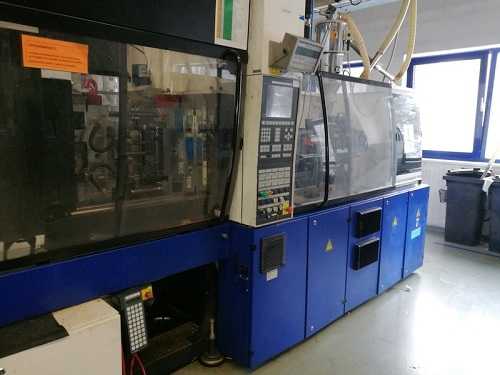

1) Injection molding machine Engel VC 500/110 Tech (2 pieces available)
Type: VC 500 / 110 Tech
Control: CC100
Robot Types: ERC 43 / 1-EA
Year of production: 2004

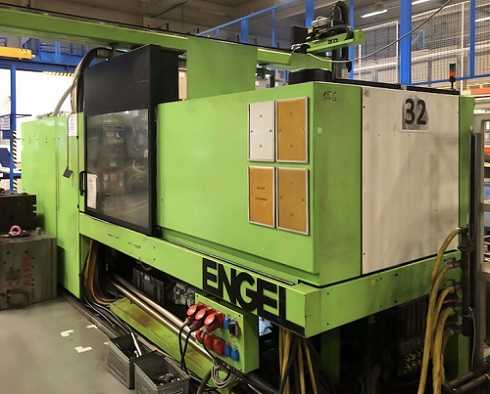

2) Name: Engel EN ES 750 - 150 HL ST
Clamping force: 150T
Screw dia: 45mm
Year: 1998
Clamping mechanism: hydraulic
Platen size HxV: 820 x 635 mm
Tie bars distance HxV: tiebarless
Injection power (cm3/g): 318/290
Max pressure: 1760 bar
Max Injection speed: 352 cm3/s
Pump input: 30 kW

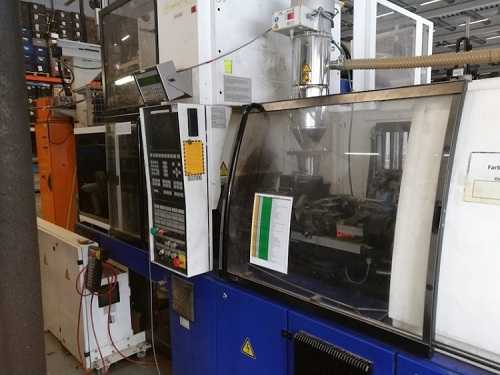

3) Type: VC80 / 35 Tech
Manufacturer: Engel
Control: CC100
Robot Types: ERC23 / 1-EA
Year of production: 2004

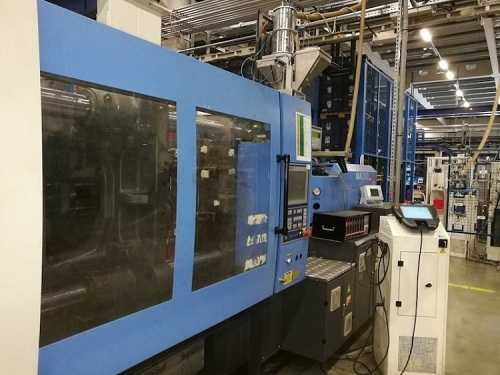

4) Type: MA 3200
Robot Types: AXESS22 S3 AXIAL
Robot Manufacturer: Sepro
Year of production: 2011
