For Sale - UM - 18148 - Plasmac Toggle Type Injection Moulding Machine
Reference Numbers
UM - 18148Product

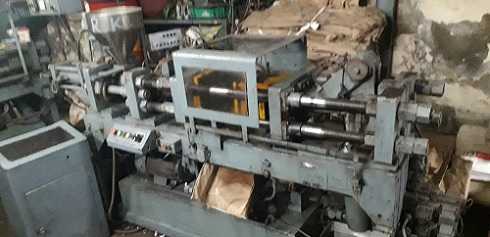

Plasmac Toggle Type Injection Moulding MachineYear Of Manufacture
1994Location
Maharashtra, India
1) Toggle Type Injection Moulding Machine
Shot Capacity : 84 gms,
Size of Mould plate : 300 mm x 270 mm x 250 mm,
Weight of Machine :1.5T
Dimension of M/c : 2.3 m x 0.5 m x 1.5 m
Hopper capacity : 5 kgs
Plasticating Capacity : 6 kgs/Hr
Oil Tank : 200 lts
Hydraulic Pump : 60 lts/min
Induction Motor : 10 HP
Heater : 2.4 KW
2) Clamping Force : 40T
Size of mould : 11""x11""
Mould Thickness : 10""
Diameter of Tiebars : 2"
Shot Weight : 84 gms
Clamp Stroke : 12""
Injection Pressure : 1000 kg
Hydraulic Pump : 60 lts/min
Oil Tank : 200 lts
Electric Motor : 10 H.P. 440 V
Heating Capacity 2.4 KW
Weight : 1.5 T
Floor Space : 2.5 mts x 0.5 mts x 1.5mts
Shipping Dimension : 12'x5"x8'
