For Sale - UM - 25151 - JP 3000 MM Extrusion Lamination Plant

Specification

Reference Numbers

UM - 25151

Product

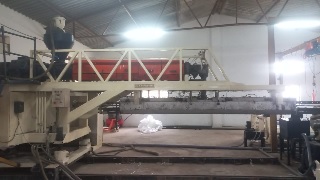

JP 3000 MM Extrusion Lamination Plant

Year Of Manufacture

2004

Location

India

Product Details

An extrusion lamination die with a length of 126 inches designed for high-performance lamination of films, foils, and paper substrates in flexible packaging and industrial applications.

Key Dimensions
Die Length: 126 inches (3200 mm)
Lip Gap Range: Adjustable (0.1 mm to 1.0 mm)
Die Body Thickness: Customizable as per material flow requirements

Functional Capabilities
Lamination Width: Up to 3200 mm
Extrusion Material:Polyethylene (PE), Polypropylene (PP)

Other thermoplastics
Processing Temperature: 200°C to 350°C
Operating Pressure: Up to 300 bar

Heating System
Type: Electric cartridge heaters
Temperature Control Zones: Multi-zone temperature control for uniform melt flow
Max Temperature Deviation: ±1.5°C

Features and Design
Die Lip Design: Flexible die lip for precise thickness control
Flow Channel Design: Streamlined manifold for uniform material distribution
Edge Beads: Minimized edge bead generation for material efficiency
Surface Finish: High-polish finish to reduce material sticking
Inspection Ports: Easy access for cleaning and maintenance

Compatibility
Extrusion Coating Line Speed: Up to 150m/min (depending on material and application)
Substrate Materials: Paper, aluminum foil, polyester (PET), nylon, and woven

Along with machine
Mixer, Colling tower, Corona treaters,Chiller unit 30 ton
