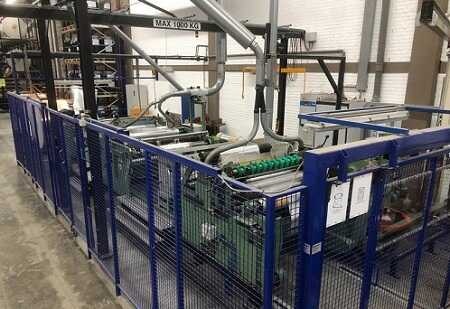

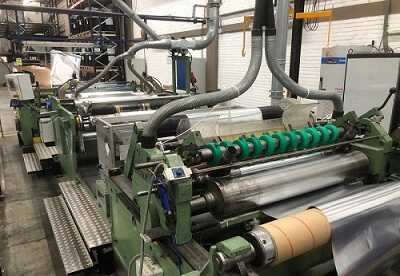

For Sale - UM - 19043 - Kampf Rasanta 8 Slitter Rewinder

Overhaul/renovation:- Machine was completely renovated in 2013
Working width (mm):- 1200
Materials:- Paper and board and laminated up to 600 gsm
Speed:- 600 m/min
Unwinder type:- Single
Max diameter reel unwinder:- 1800
Rewinder type:- Single
Max diameter reel rewinder:- 1800

Rewinder description:- Machine with 2 rewinders, one for board:
Rewind board Core 300 mm, reela diam 1800mm and one for transfer film reel diam 700
Min slit width:- 60 mm
Knives:- Rotary

Additional information:-
Functions:- Board and film slitting into smaller reels -
Splitting board from transfer film Unwind Board/paper material: Max Diameter Reel in 1800 (mm)
Core size 300 (mm) standard or 150 (mm)
Max width 1270 (mm)
Web guide: FIFE Slitting/cutting First slitting unit positioned at film -paper splitting unit, mainly for sides-mid: - 2 knives Tidland Cotta Rotary knive system - Dust removal system (vacuum clean), anti static bar Slitting/cutting (at rewind board): Multiple knives able to slit to small width reels min width 60 (mm) Rewind Transfer film, Core 150,
Maximum diameter 700 (mm) Corona Treater (on board surface) Vetaphone Corona plus cp3 MKII 6 kW Rewind board, Core 300 (mm), Maximum diameter 1800 (mm)
