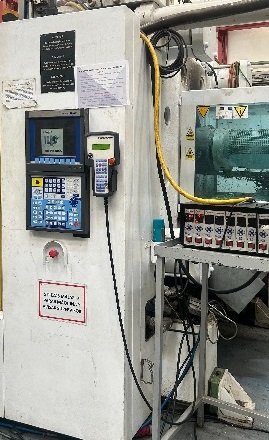

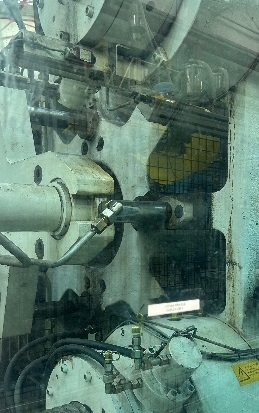

For Sale - UM - 33332 - Krauss Mafei 1000 Ton Injection Moulding Machine

Clamping force 1,000 tons (10,000 kN)
Screw diameter 105 – 115 mm
Injection volume approx. 4,500 – 5,450 cm³
Shot weight (PS) approx. 4,100 – 4,960 g
Injection pressure up to 1,480 – 1,780 bar
Tie bar spacing 1,400 × 1,120 mm
Platen dimensions approx. 1,960 × 1,740 mm
Minimum mold height 500 mm
Maximum mold height 1,200 mm
Opening stroke approx. 1,700 – 1,900 mm
Maximum daylight approx. 2,400 mm
Injection rate approx. 650 – 960 cm³/s
Plasticizing capacity approx. 110 – 190 g/s
Installed heating power approx. 50 – 65 kW
Hydraulic oil tank approx. 1,500 L
Machine weight approx. 45,000 – 52,000 kg
Approximate dimensions 11,000 – 11,200 × 2,400 – 3,400 × 2,300 – 2,600 mm
