For Sale - UM - 19670 - Krauss Maffei 300 Ton Electric Injection Molding Machine

Specification

Reference Numbers

UM - 19670

Product

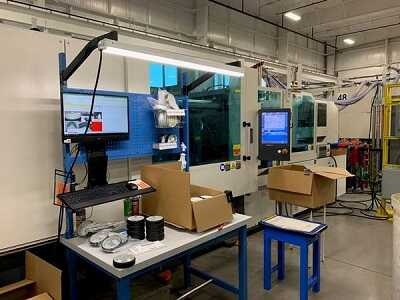

Krauss Maffei 300 Ton Electric Injection Molding Machine

Year Of Manufacture

2014

Location

USA

Product Details

Model:- KM280/750AX
Shot Size:- 8.1 oz
Tie Bar Spacing:- 28.76" X 26"
Platen Size:- 40.58" X 37.82"
Max Daylight:- 53.19"
Min /Max Mold Height:- 9.85" X 29.55"
Clamp Stroke:- 23.6"
Control:- MC6

Identical Machine Model KM280-180AX Also Available with 2.03 oz Shot Aand 28 mm Screw

Equipped with:-
CIMI Interface
Hydraulic Control for Hot Runner
Hydraulic Core Pull System 1-Fold on Moving Platen
Pneumatic Valve on Moving Platen
Air Eject
Robot Interface
