For Sale - UM - 33336 - Krauss Maffei 650 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 33336

Product

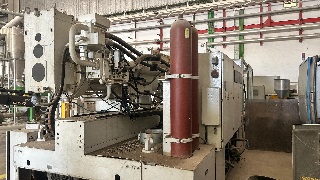

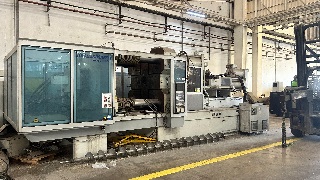

Krauss Maffei 650 Ton Injection Moulding Machine

Location

Europe
Product Details

Model KM 650-3500 C2
Serial Number 61006876
Machine Type Horizontal hydraulic injection molding machine
Control System MC3 / MC4 (depending on version)
Application:-Heavy industrial production (automotive, containers, technical
parts)

Clamping Unit
Clamping Force 6500 kN (650 tons)
Opening Stroke ~1150 mm
Maximum Daylight Up to ~1750 mm
Platen Dimensions ~1490 × 1440 mm
Tie Bar Spacing 1000 × 930 mm

Injection Unit
Screw Diameter ~90 mm
Injection Volume ~1953 cm³
Shot Weight ~1777 g
Injection Pressure ~1740 bar

Dimensions & Weight
Dimensions (L × W × H) ˜ 8.5–9.3 × 2.4–2.8 × 2.5–2.7 m
Machine Weight ˜ 23,000–35,000 kg
