Reference Numbers
UM - 19374Product

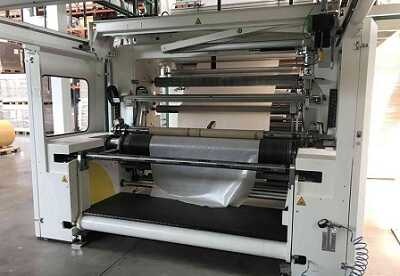

Kuhne 5 Layers Blown Film Extrusion MachineYear Of Manufacture
2012Location
Europe
Model:- C5 / 2000 MAX TL
Number of layers:- 5
Film structure:- ABCDE
Material:- LDPE, LLDPE, MDPE, PP, EVA
Film Width:- 2000 mm
Output:- 500 kg/h
Extruder 1 Layer ref:- A
Screw diam:- 72 mm
Description:- Gravimetric doser Octagon 5 comp. Pump type screen changers
Extruder 2 Layer ref:- B
Screw diam:- 60 mm
Description:- Gravimetric doser Octagon 4 comp. Pump type screen changers
Extruder 3 Layer ref:- C
Screw diam:- 72 mm
Description:- Gravimetric doser Octagon 5 comp, Pump type screen changers
Extruder 4 Layer ref:- D
Screw diam:- 60 mm
Description:- Gravimetric doser Octagon 4 comp. Pump type screen changers
Extruder 5 Layer ref:- E
Screw diam:- 72 mm
Description:- Gravimetric doser Octagon 5 comp. Pump type screen changers
Head description:- IBC, Air ring Smart lip maximizer
Die diam:- 350mm inserts for 1,5 mm gap and 2.8 mm gap
Thickness controll system:- Automatic thickness profile control, Make: K design
Bubble cage:- Motorized heigth and opening.
Panel for gussets:- yes, motorized. Gussets width up to 400mm
Take off unit:- Rotating
Corona treatment:- AFS
Web guide
Rewinder max reel diameter:- 1200mm
Additional information:- Automated width control
