For Sale - UM - 25261 - L&T 350 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 25261

Product

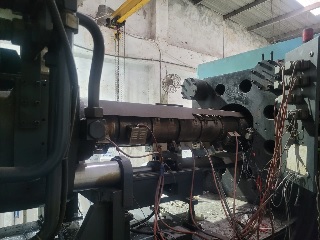

L&T 350 Ton Injection Moulding Machine

Year Of Manufacture

2006

Location

India

Product Details

Machine Type: DT350-2050 LNC5
Overall Size of Platens = 940 × 940 mm
Distance Between the Tie Bars = 630 × 630 mm
Mould Height Min. = 330 mm
Mould Height Max. = 770 mm
Mould Diameter Min. = 450 mm
Mould Weight Max. = 3500 Kgf
Mould Weight on Moving Platen Max. = 2300 Kgf
Power Rating: 37 KW
Weight: 14.2 t

Mains Connection:
Voltage: 415V, Frequency: 50 Hz, Current: 104 A
Voltage: 415V, Frequency: 50 Hz, Current: 65 A
Voltage: 415V, Frequency: 50 Hz, Current: 35 A
