For Sale - UM - 17457 - Soma Lamiflex Solventless Lamination & Coating Machine
Reference Numbers
UM - 17457Product

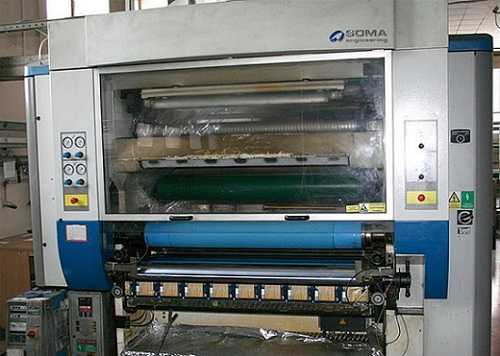

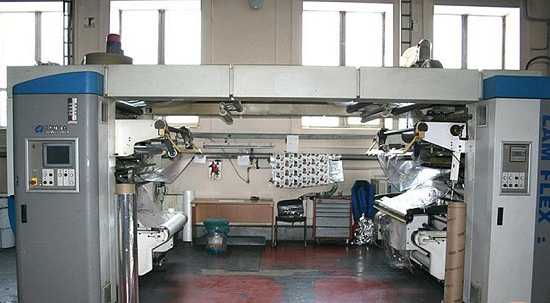

Soma Lamiflex Solventless Lamination & Coating MachineYear Of Manufacture
2010Location
Europe
Application:- Duplex lamination
Type of lamination/coating:- Solventless
Working width (mm):- 1310
Materials:- Materials to be processed: Primary adhesive application materials: BOPP 0.012 - 0.08 mm ; PET 0.01 - 0.06 mm ;PE, LDPE 0.04 - 0.2 mm ;OPA 0.012 - 0.06 mm ;CAST PP 0.06 - 0.15 mm ;CAST PA 0.05 - 0.08 mm ; Alu foil 0.012 - 0.04 mm ; Paper 30-150 g/m2 ;Laminate up to 100 g/m2 . Secondary materials are laminated: BOPP 0.012 - 0.08 mm; PET 0,008 - 0,03 mm; PE, LDPE 0.02 - 0.2 mm ;OPA 0.012 - 0.06 ;Cast PP 0.02 - 0.15 mm ;CAST PA 0.02 - 0.08 mm ;Al foil 0,008 -0,04 mm ;Paper 30 - 150 g/m2
Speed:- 400 m/min . Working speed of lamination 100 - 250 m/min
Max diameter reel unwinder:- 1000
Max diameter reel rewinder:- 1000
Pumping mixing unit:- Mixer two components Vea Matrix M5 year 2009
Additional information:- Material width 300-1320 mm
Unwinder able to work with 76 and 152 mm shafts,
Reels weight 1000 kg
Rewinder able to work with 76 and 152 mm shafts, weight 1000 kg Maximum material thickness on the unwinding 0.3 mm
