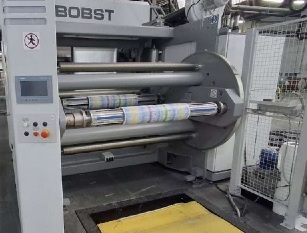

For Sale - UM - 33430 - Bobst 400F Rotoextruder Coating & Lamination Line

Model - Rotoextruder 400F For extrusion coating and laminating
Layers - 3
Diameter screw(s) - 100 mm - 80 mm
L:D ratio screw(s) - 30D
Max. web width - 650 - 1700 mm
Type of winding - Automatic turret
Unwind type (1) - Automatic turret
Max. unwind reel diameter (1) - 1000 mm mm
Unwind type (2) - Automatic turret
Max unwind reel diameter (2) - 1000 mm mm
Materials - From primary unwinder:
BOPP 15 – 50 µm
PET 12 – 50 µm
PA 23 – 100 µm
OPA 15 – 50 µm
PE 35 – 100 µm
Paper 40 – 100 g/m2
Lamination materials 50 – 140 g/m2

For unwinder no 2
Alu foil 6 – 20 µm
BOPP 15 – 50 µm
PET 12 – 50 µm
PE 35 – 100 µm
Die width - 1700 mm
Type of screenchanger - Hydraulic
Type of dosing unit - Gravimetric, Doteco
Thickness measurement - Yes
Web guide(s) - Yes
Corona treater - Yes
Inline slitting - Yes, with edge suction
Other information - Coating unit:
Water based primer coating - Rotogravure
Available from - Now
Machine can be seen in production - Yes
Speed - 400 m/min
