For Sale - UM - 19034 - Applied Film Topmet 2020 Vacuum Metallizer

Specification

Reference Numbers

UM - 19034

Product

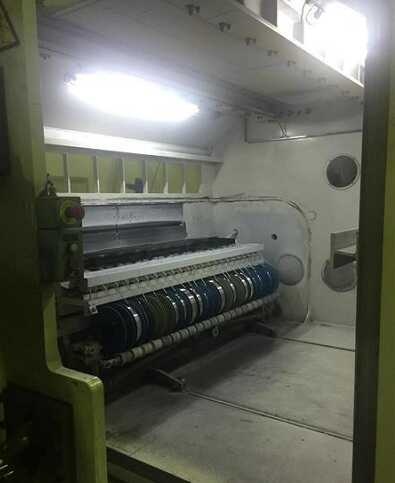

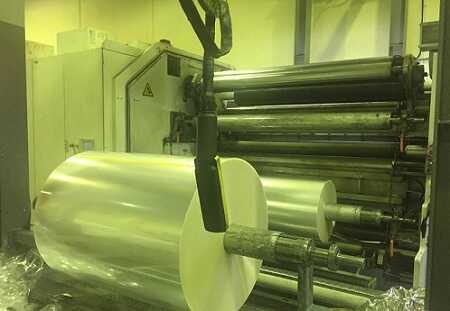

Applied Film Topmet 2020 Vacuum Metallizer

Year Of Manufacture

2005

Location

Europe
Product Details

Model:- Topmet 2050
Working width (mm):- 2050
Materials:- BOPP film
Speed:- 840 m/ min
Max diameter reel unwinder:- 1000
Max diameter reel rewinder:- 1000
Evapouration Boots:- 22
Pumping down time:- < 7 min .

Pumping system :-
High Vacuum Pumps Number: 3 Oil diffusion pumps Type DIP 20.000 Nominal Pumping Speed: 20,000 l/s each Medium Vacuum Pump Number 1 Root pump Type WAU 2001
Nominal Pumping Speed: 2,050 m3/h
Rough Vacuum Pump Number: 1
Rotary vane pump Type SV 630 F
Nominal Pumping Speed: 700 m3/h

Polycold:- Number: 1 Polycold PFC 1102 HC

Additional information:- Coating area Full web width wiith 10 mm edge masking Working pressure: approx. 4x10-4 mbar Pumpdown time: 7 min 1 coating drum 500 mm diam 1 drum cleaining device 1 cooling and heating unit Kelviplast 1 drawing roller 180m mm
