For Sale - UM - 33199 - Mita Side Sealed Bag Making Machine
Reference Numbers
UM - 33199Product

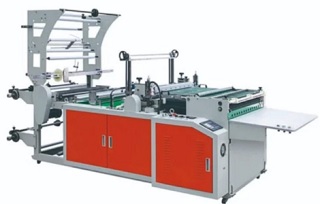

Mita Side Sealed Bag Making MachineLocation
India
Number of machine 4
Powder coated machine built on two solid plates.
Machine operated by SERVO system, PLC and MMI.
Size and count set in MMI digitally.
7" Touch Screen MMI.
High speed up to 250 strokes/min.
Sealer slide in linear bearing.
Linear control for unwind.
Brake motor as main motor to stop accidental fall of sealer.
Machine stops for Servo error codes, i.e. high voltage, low voltage, overload, high current, and high speed.
Isolation transformer for safeguarding the Servo system.
Sealing tape, bottom gusset, top fold (both ends).
Specifications:
Model: SSB 650
Max. Roll Width: 610 mm
Max. Cut Length: 750 mm
Minimum Cut Length: 55 mm
Connected Load: 6 HP
Production Speed: 25 micron LD Bag, 4" × 5", 250 strokes/min
