For Sale - UM - 33121 - Nissei 280 Ton Injection Moulding Machine
Reference Numbers
UM - 33121Product

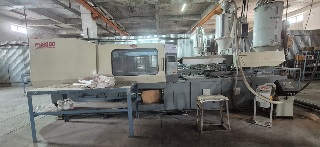

Nissei 280 Ton Injection Moulding MachineLocation
India
Injection Mechanism
Method: Inline screw type
Operation:Fully automatic
Screw Diameter: 55 mm
Injection capacity: 641 cm³
Injection weight (PS): 608 g
Plasticizing ability (PS): 158 kg/hr
Injection pressure: 2247 kg/cm²
Injection rate: 253 cm³/sec
60 mm
Injection capacity: 763 cm³
Injection weight (PS): 724 g
Plasticizing ability (PS): 190 kg/hr
Injection pressure: 1888 kg/cm²
Injection rate: 302 cm³/sec
68 mm
Injection capacity: 980 cm³
Injection weight (PS): 931 g
Plasticizing ability (PS): 244 kg/hr
Injection pressure: 1470 kg/cm²
Injection rate: 388 cm³/sec
Screw rotation speed: 10–257 rpm
Screw stroke: 270 mm
Hopper capacity: 125 L
Nozzle gate diameter: 3 mm
Maximum dimension from rotating platen to nozzle tip: 50 (90) mm
Mold Clamping Mechanism
Method:Double toggle method
Mold clamping force:280 ton
Mold clamping stroke: 580 mm
Minimum mold thickness: 250 mm
Maximum mold thickness: 550 mm
Tie bar spacing (H × V): 730 × 730 mm

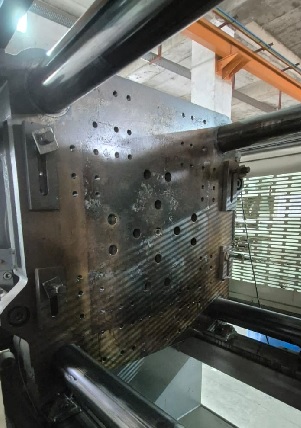

Mold mounting platen dimensions (H × V): 940 × 940 mm
Ejector:
Ejector stroke: 140 mm
Location screw hole diameter: 100 / 120 mm
R of nozzle tip: 10 mm
