For Sale - UM - 19060 - 1320 MM Nordmeccanica Triplex Combi Lamination & Coating Machine

Specification

Reference Numbers

UM - 19060

Product

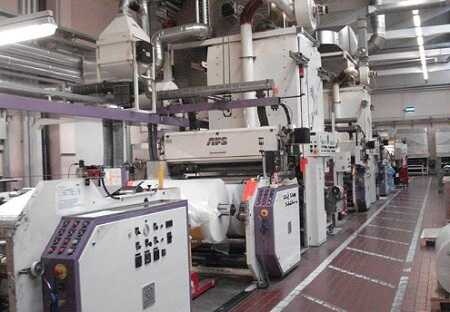

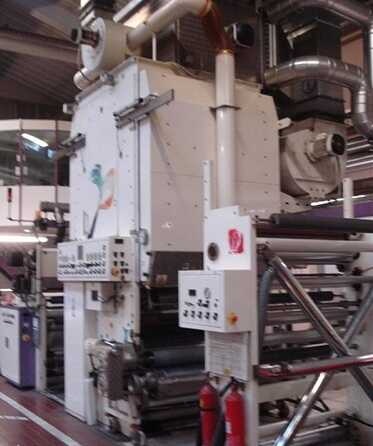

1320 MM Nordmeccanica Triplex Combi Lamination & Coating Machine

Year Of Manufacture

1996

Location

Europe
Product Details

Application:- Lamination + coating
Type of lamination/coating:- Triplex Lamination Solvent based and solventless, lamination + coating
Working width (mm):- 1320
Materials:- All plastic film BOPP, CPP, PET , Nylon ,
Speed:- 250
First unwinder type:- Turret automatic
Max diameter reel unwinder:- 800
Secondary unwinder type:- Turret automatic
Max diameter reel unwinder:- 800
Third unwinder type:- Turret automatic
Max diameter reel unwinder:- 800
Rewinder type:- Turret automatic
Max diameter reel rewinder:- 1000
Coating unit:-Combi Gravure trolley and solventless trolley
Second Coating unit Combi Gravure trolley and solventless trolley
Drying:- Each coating unit has a double hood drier 2 x 3 mt with blowing and exhaust fan and thermo oil heat exchanger
Register control:- yes for cold seal
Pumping mixing unit:- 2 pumping dosing units for solventless adhesives
Corona treatment:- yes 3 corona by AFS
Coating rollers:- 10 transfer roller for solvntless trolleys
Additional information:- Turning bar between two coating units
