For Sale - UM - 22451 - Moss MO-2012/5 SPU Offset Printing Machine

Specification

Reference Numbers

UM - 22451

Product

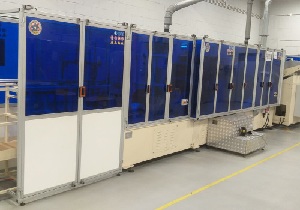

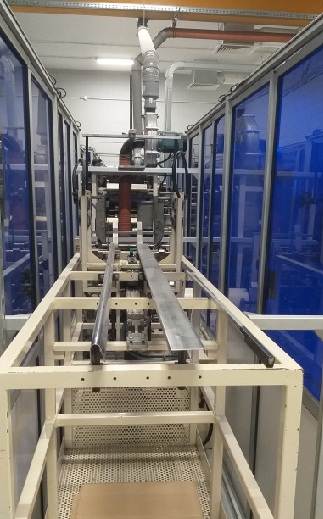

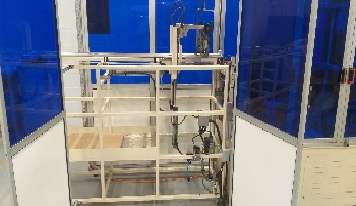

Moss MO-2012/5 SPU Offset Printing Machine

Year Of Manufacture

2011

Location

Europe

Product Details

Tray size range:
Lenght: 250-320mm
Width: 220-225mm
Printing area: 120x290 mm
Number of the printing colors: 2-5
Capacity: 6000 pcs/h
Real capacity: 3750-5000 psc/h
Printing plate thickness: 0.83mm
Supply voltage: 380V/50Hz
Power supply: 23 KW
Electric wire: 5 wires
Expected pressure: 6 bar
Air supply: 6-12 bar
Air consumption: 500NL/min
Pneumatic holes diameters: Øi- 9mm Øe-12 mm
Weight: 5300kg
Noise (near 1m): max 75dB
Main engine: 2,2 kW
Operation: approx 10 000h
