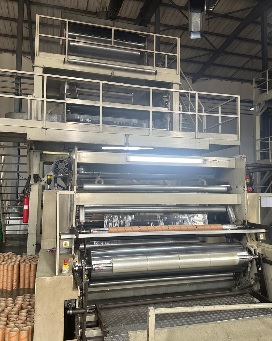

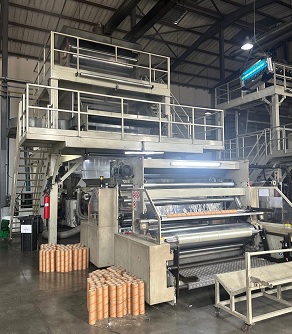

For Sale - UM - 25381 - One Vertical Extrusion Line For The Production Of Blown PVC Cling Film TR 120
Specification
Reference Numbers
UM - 25381Product
One Vertical Extrusion Line For The Production Of Blown PVC Cling Film TR 120Location
South AfricaProduct Details

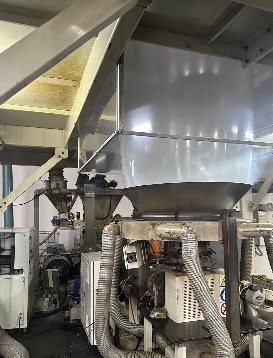

Extruder hopper capacity: 150 kg
Extruder barrel diameter: 120 mm
Extruder barrel length: 30 D
Maximum screw mechanical speed: 70 RPM
Main motor power: 90 kW
Barrel heating system: Electrical elements
Barrel heating power: 42 kW
Barrel cooling system: Forced air cooling
Extrusion die diameter: 290 mm
Cooling ring diameter: 500 mm
Roller width on Primary Nip Unit: 2200 mm
Roller width on Intermediate Nip Unit: 2200 mm
Roller width on winders: 2100 mm
Maximum speed of winders: 150 m/min
Maximum diameter on winders: 400 mm
Diameter expansion shafts: 3” (74 mm)
