For Sale - UM - 11264 - Tecno Coating 3 Layer 2000 mm Cast Film Line
Reference Numbers
UM - 11264Product
Tecno Coating 3 Layer 2000 mm Cast Film LineYear Of Manufacture
1997Location
Italy
- Film structure: A-B-C with posibilities AB/BA/ABA/ABC/AAA
- Material: CPP, STRETCH 15-50 my; PP 20 - 150 my Film width (mm): 1500
- Extruder 1 Layer ref: : A
- Screw diam: 65mm
- Extruder 2 Layer ref: : B
- Screw diam: 130mm
- Extruder 3 Layer ref: : C
- Screw diam: 65mm
- Head description: Farcon
- Die width (mm): 2000

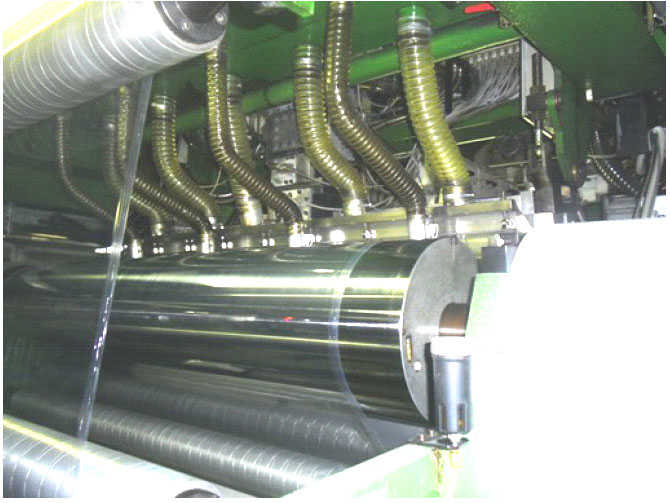

- Chill roll unit: Chill roll and rolls width 2100 mm;Diam. chill roll 700 mm
Die head width 2050
mm, usefull 2000 mm.
- Thickness controll system: Control thickness system - Electronic system
- Corona treatment: yes. Mero
- Web guide: Web guide E+L
- Additional informations: Temperature and pression control Dynisco; Power load 400-500 kw ;
(For images see following page)
