For Sale - UM - 11366 - Krauss Maffei 51.5 tones Injection Moulding Machine

Specification

Reference Numbers

UM - 11366

Product

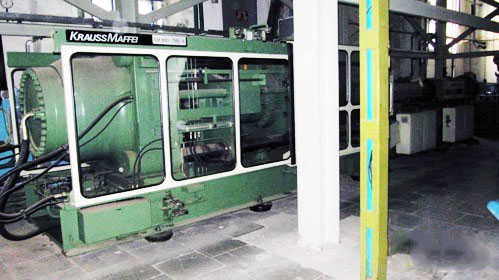

Krauss Maffei 51.5 tones Injection Moulding Machine

Year Of Manufacture

1992

Location

Russia

Product Details

- Model : KM 800-7350A
- Clamping force 8000 kN
- Distance between tie bars 1000 mm x 1000 mm
- Size of platen 1500x1500mm
- Min-max height of injection mold 600-1100 mm
- Shot volume 8000 cm3
- Injection pressure 960 bar
- Motor 132 kW
- Dimension 12460 ? 2460 ? 2550 mm
- Weight of machine 51.5 tones

(For images, Please see next pages.)
