For Sale - UM - 12213 - 2.5" Battenfeld Gloucester Single Screw Extruder

Specification

Reference Numbers

UM - 12213

Product

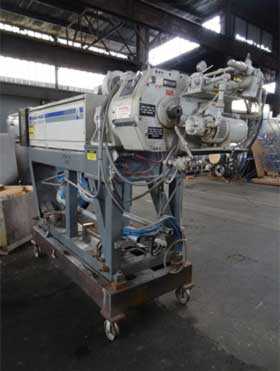

2.5" Battenfeld Gloucester Single Screw Extruder

Year Of Manufacture

1995

Location

USA

Product Details

- Motor HP: 60
- Screw Diameter: 2.5
- Length to diameter ratio: 30:1
- Electrically heated
- Air cooled with contra cool
- Jacketed feed section
- 60 hp dc motor with screw controller
- Manual screen changer
- 69.5" center line height currently can be lowered to 49.5" center line height
- 13.75:1 gearbox ratio
- Gearbox model# 25225 R2 with cooling system with pump and heat exchanger
- Control panel with Eurotherm controllers
- 5 barrel zones and 7 auxilary zones
