For Sale - UM - 13889 - W&H 5 Layer Cast Extrusion Line

Specification

Reference Numbers

UM - 13889

Product

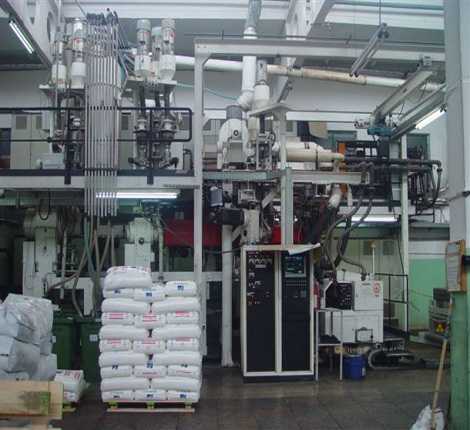

W&H 5 Layer Cast Extrusion Line

Year Of Manufacture

1995

Present Condition

Available from Now Machine can be seen in production

Location

Europe

Product Details

Model : Filmex
Type of extruder : Cast
Number of layers : 5
Diameter screw(s) : 120, 70x2, 45x2
Material & Min – Max thickness : CPP, PA, EVOH, Carasine, PE
Max. film width : 1920 mm
Min. – Max. film thickness : 20 – 250 mu
Max. output : 350 kg/hour
Rewind manufacturer : W&H
Max. rewind reel diameter : 1000 mm
Number & sizes airshafts for winder : 152 x 2
Edge guide(s) : BST
Corona treater : 2x
Manuals available
Spare parts : Extra die
