For Sale - UM - 15973 - W&H Roto Coating/Printing Machines

Specification

Reference Numbers

UM - 15973

Product

W&H Roto Coating/Printing Machines

Year Of Manufacture

1995

Location

Europe
Product Details

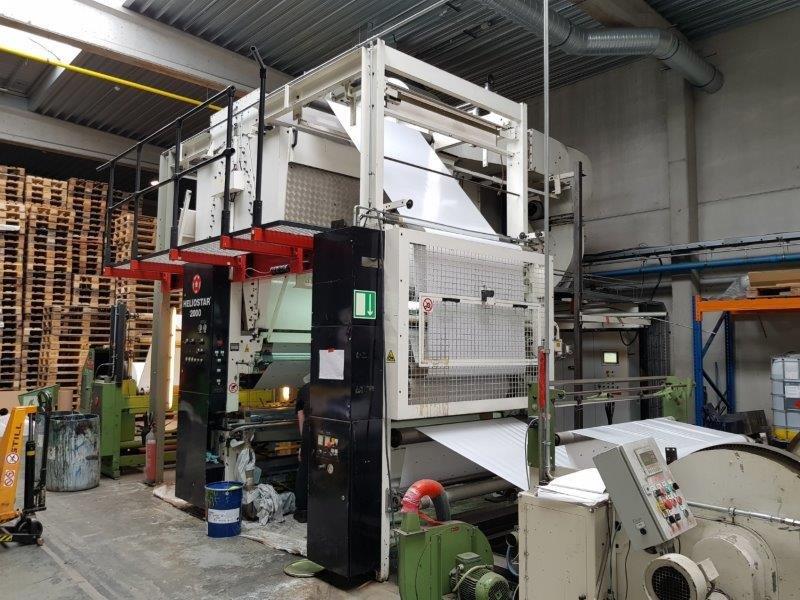

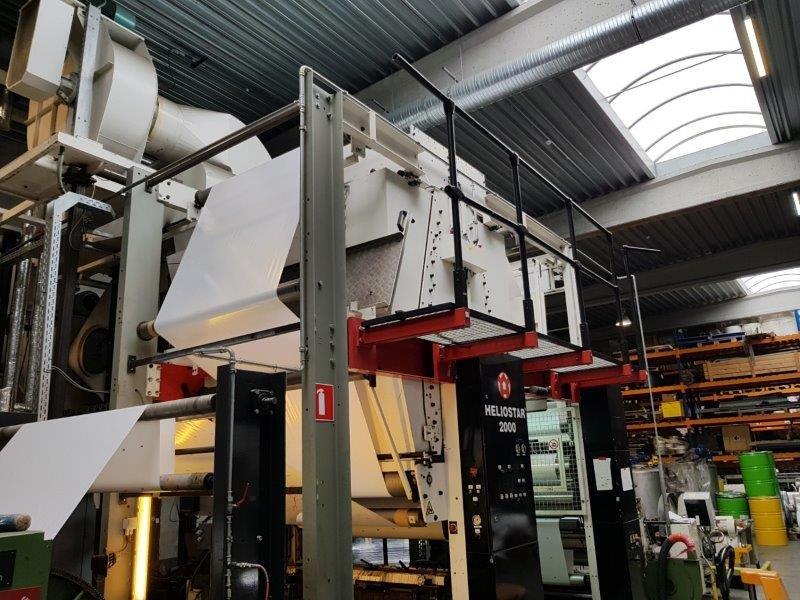

Model:- Heliostar rotogravure
Type:- Solventbased
Gearless
Electronics renewed in 2013
Number of colors:- 1
Max. web width:- 1450 mm
Max. printing width :- 1420 mm
Max. mechanical speed:- 400 m/min
Unwind type:- Turret
Max. unwind reel diameter:- 800 mm
Rewind type:- Turret
Max. rewind reel diameter:- 800 mm
Number & sizes airshafts for winder:- 4 x 6"
Drying type:- Thermic oil
Heating source included
Edge guide(s)
Number of aniloxes 2 (1 brand new)
Spare parts:- One extra spare trolley
Special characteristics:- Suitable for coating/cold seal
Conical sleeve system (5 sleeves available)
