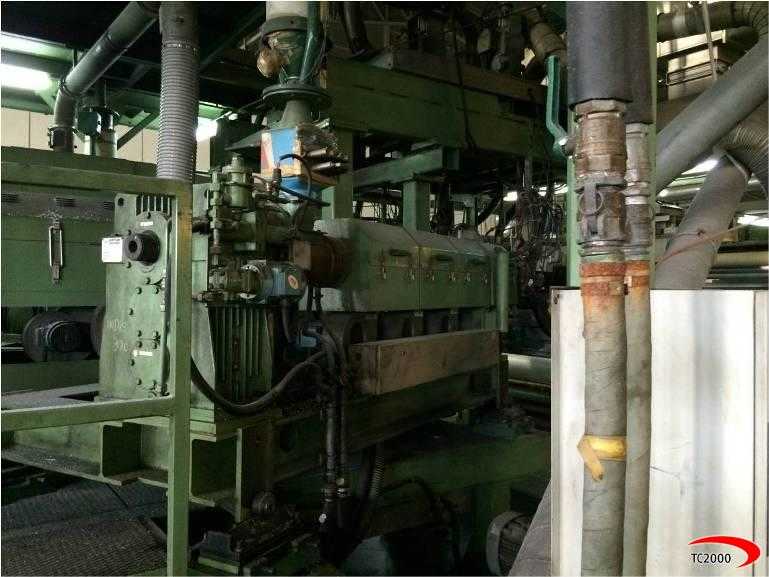

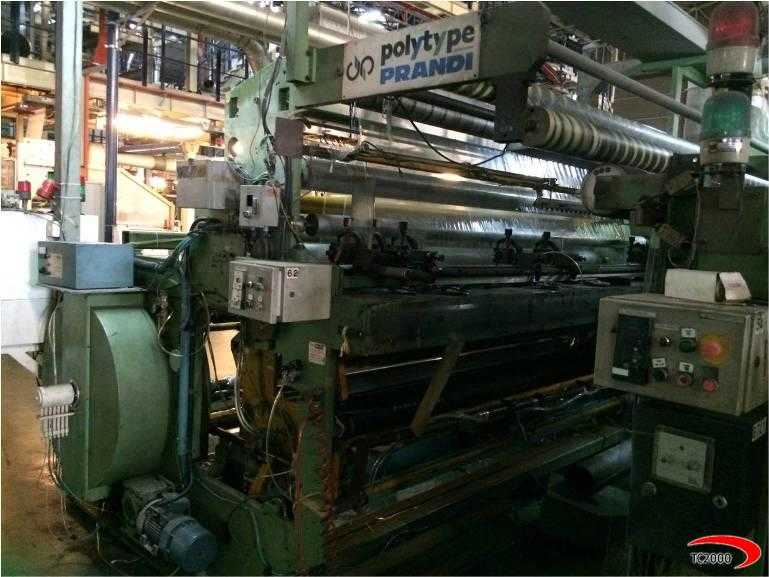

For Sale - UM - 16222 - Polytype 5 Layers Cast Film Extrusion Machine

Specification

Reference Numbers

UM - 16222

Product

Polytype 5 Layers Cast Film Extrusion Machine

Year Of Manufacture

1992

Location

Europe
Product Details

Material: CPP- BARRIER FILM
Film width: 2600 mm
Speed (m/min): 80 mt/min
Output (Kg/h): 350 kg/h
Screw diam: 90
Description: Dosing unit Process Control Corporation 5 components
Screw diam: 160
Description: Dosing unit Process Control Corporation 5 components
Screw diam: 90
Description: Dosing unit Process Control Corporation 5 components
Die width: 3000 mm Make Cloeren , manual adjustments, feed block 5 ply
Chill roll unit: Diameters: primary 800 mm; secondary 400 mm
Thickness control system: Thickness gauge Scantech new in 2010. Gauge works with Infra Red technology. NO radioactive source

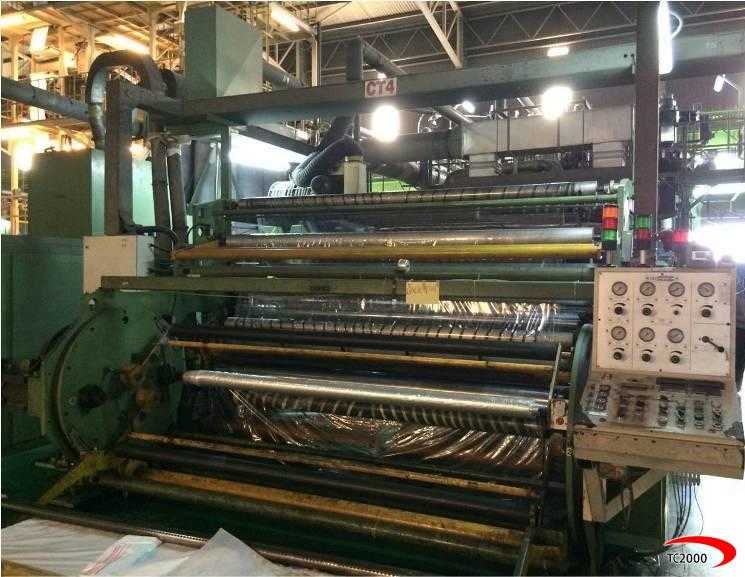

Rewinder description: Automatic turret winder
