For Sale - UM - 2328 - Ghioldi Stretch Film Extrusion Line
Reference Numbers
UM - 2328Product
Ghioldi Stretch Film Extrusion LineYear Of Manufacture
1997Location
Europe
- Capacity of the line: 400 kg/h
- Max film width: 1600 mm
- Film structure: A 15 percent - B 70 percent - C 15 percent
- Number of Extruders: 3
Extruder A:
- Screw diameter: 60 mm
- L/D: 30 D
- Motor: Siemens, D.C., 57 kW
- Dosifier: Yes
- Type: F4
- Number of components: 2
- Brand: Colormax
Extruder B:
- Screw diameter: 90 mm
- L/D: 30 D
- Motor: AEG, 150 KW, D.C.
- Dosifier: Yes
- Number of components: 1
Extruder C:
- Screw diameter: 60 mm
- L/D: 30 D
- Motor: Siemens, 57 KW, D.C.
- Dosifier: Yes
- Type: F4
- Number of components: 2
- Brand: Colormax

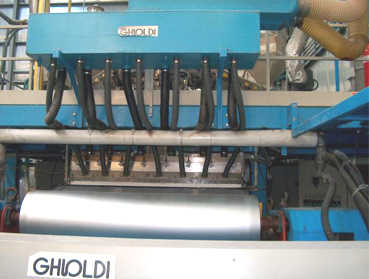

Diehead:
- Brand: EDI
- Width: 2000 mm
- Opening: 0-1, 0 mm
- Automatic controlled: Yes
- PLC: Yes
- Thickness control system: Yes
- Brand: Electronic Systems
- Type: Radioactive
- Thickness tolerance: 5 percent
- Thickness range:
a. from 17 microns upto 40 microns stretch on both sides
b. from 25 microns upto 75 microns cling one side

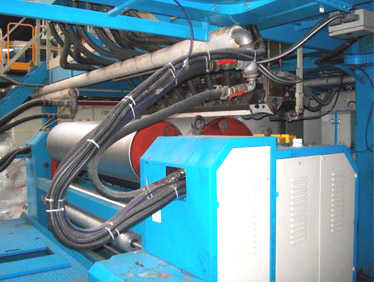

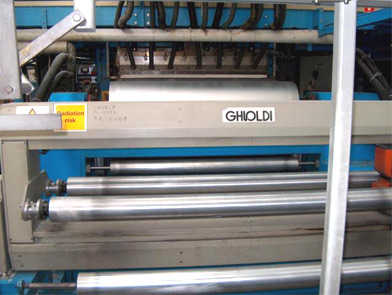

Chill roll:
- Diameter: 800 mm
- Cooled by: Water
- Motor: D.C., 1.88 KW
(For more details & images, please see next pages)
