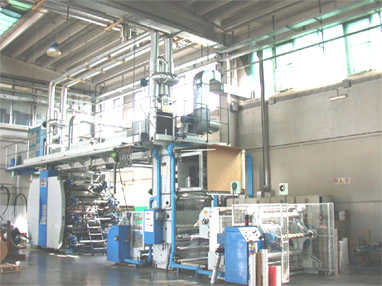

For Sale - UM - 2863 - Uteco 8 Colours Flexographic Printing Machine

Type: Amber 808
Model: 120

Machine main technical features:
Number of printing stations and printing possibilities:
- Number of printing stations: 8
- Printing possibilities (8+0)

Material and printing width:
- Material width: Max. 1250 mm
- Printing width: Max. 1200 mm

Printing repeat:
- Printing repeat range: Min. 320 mm - max. 850 mm
Note: For repeats between 300 mm and 400 mm printing quality may be restricted according to machine speed.

Machine speed:
- Mechanical speed: 250 m/min max

Printing speed:
The actual effective printing speeds are subject to the following conditions:
- Type of material
- Repeat of printing cylinders and cliches
- Inks, lacquers and solvents
- Required print quality
- Solvent retention level

Machine safety standards:
- Machine directive (CE marked)

Semi automatic turret unwinder SA-U:
- Semi automatic turret unwinder SA-U, for outside diameter of reels: max
800 mm.
- Cast-iron frames
- Turret rotation by means of a motor and a motor- reducer

Web infeed unit: Aluminium idler rollers.

Web infeed guide: Web infeed guide type Kamberoller.

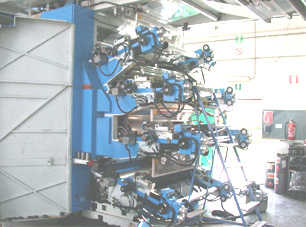

Printing group: Printing group composed of a central drum

Components of the color unit:
- Number of printing units:
The standard machine configuration has a total number of 8 color units.

Printing cylinder:
Printing plate cylinder, statically and dynamically balanced.

Cylinders included in the supply
- Plate cylinder repeat (cm): 32, 34, 37, 40, 42, 44, 47, 49, 51, 55, 57, 59, 62, 65, 67, 69
- Total number of cylinders (each): 8
Available in the condition as it is.
(They must be verified)

Gear available with the supply:
a. Gear repeat:
- 32 Plate thickness 1.14
- 33 Plate thickness 2.54
- 34 Plate thickness 1.14
- 35 Plate thickness 2.54
- 37 Plate thickness 1.14
- 38 Plate thickness 2.54
- 40 Plate thickness 1.14
- 41 Plate thickness 2.54
- 42 Plate thickness 1.14
- 43 Plate thickness 2.54
- 44 Plate thickness 1.14
- 45 Plate thickness 2.54
- 47 Plate thickness 1.14
- 48 Plate thickness 2.54
- 49 Plate thickness 1.14
- 50 Plate thickness 2.54
- 51 Plate thickness 1.14
- 52 Plate thickness 2.54
- 55 Plate thickness 1.14
- 56 Plate thickness 2.54
- 57 Plate thickness 1.14
- 58 Plate thickness 2.54
- 59 Plate thickness 1.14
- 60 Plate thickness 2.54
- 62 Plate thickness 1.14
- 63 Plate thickness 2.54
- 65 Plate thickness 1.14
- 66 Plate thickness 2.54
- 67 Plate thickness 1.14
- 68 Plate thickness 2.54
- 69 Plate thickness 1.14
- 70 Plate thickness 2.54

b. Total number of gears (each): 8

Anilox roll:
Chromium-plated steel anilox roller. The lockdown caps of the anilox rollers'
supports are bolted.
A total of fourteen anilox are included as follows: (They must be verified)
- 2 x 80 l/cm
- 1 x 100 l/cm
- 4 x 260 l/cm
- 4 x 160 l/cm
- 3 x 120 l/cm

Closed chamber doctor blade:
Closed chamber doctor blade, complete with end seals, blade holders and
beveled blade.
A total of ten doctor blades are included.

Ink tray:
Stainless steel ink tray complete with ball valve, connection and rubber holder
for ink hose.
A total of ten ink trays are included

Ink pump:
Electrical ink pump completed with tank
A total of ten electrical pumps are included, completed with tanks

Drying section:
- Between colour drying equipment:
a. Between color boxes, steel made, installed on side slides for immediate
removal.
b. The air supply elements inside the boxes are noozle type.

Final drying equipment:
Drying tunnel. The bottom frames of the tunnel are made of cast iron

Outfeed unit:
- Outfeed and chiller roller:
Chromium-plated chill roll, for cooling and feeding of the web. A rotary union connects the roll to the chiller unit (unit excluded).

Video camera: Video camera BST-EAGLE 3 chip included in the supply.

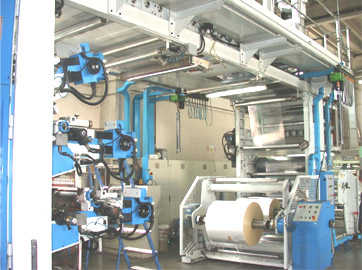

Automatic turret rewinder TA-R:
- Automatic turret rewinder TA-R, for outside diameter of reels: max 800
mm.
- Cast-iron frames.
- Indexing of the turret through auxiliary AC motor and reducer.

(For images, please see next pages)
