For Sale - UM - 3274 - Davis Standard Conical Pipe Plant
Reference Numbers
UM - 3274Product
Davis Standard Conical Pipe PlantLocation
USA

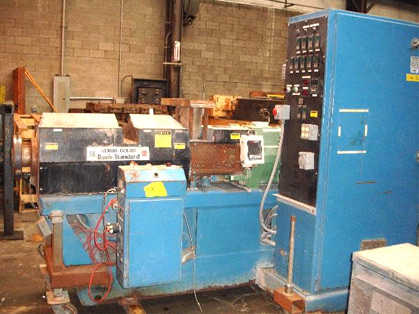

1) (1) used Davis Standard Gemini conical twin screw extruder, model GC8HD
- 130/61 mm conical screws, counter rotating,
- Electrically heated, air cooled barrel
- Jacketed feed section
- 48" long vented barrel with vacuum pump
- 17.4:1 gearbox ratio with 40 HP 260/460 volt AC motor with AC variable speed controller,
- On unitized base with control panel with 4 barrel, 1 flange and 4 die zones, gearbox new 2006.
- Price: US$ 47,500

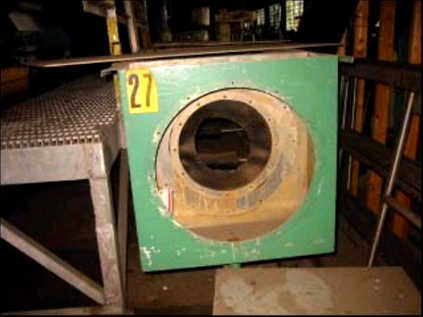

2) 15 inch Emery Stainless Steel Vacuum Sizer:
- (1) used Emery vacuum sizer, 15' long, stainless steel construction, 19" x 19" chamber, with (2) 6' long, (1) 3' long chambers with covers, 15" diameter maximum opening, on board pumps.
- Price: US$ 14,500
3) Spray Cooling Tank:
- (1) used spray cooling Tank, approx. 20' long x 19" wide x 19" deep with 14" diameter max., with covers, 10 H.P., 208-230/460 volt circulation pump.
- Price: US$ 6,500
4) CDS Belt Puller:
- One (1) used CDS puller, model CCH-60-8, 60" long x 8" wide contacts, individually driven belts with 2 hp motors through gear reducers with AC VFD controllers, new 2001
- Price: US$ 15,000
(For images, please see next pages)
