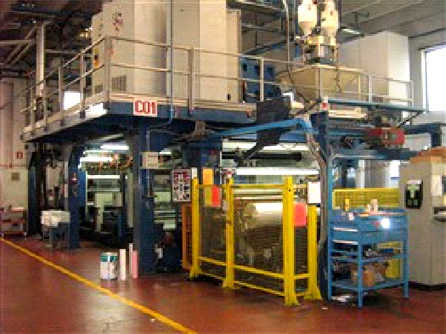

For Sale - UM - 3284 - Dolci 3 Layers Cast Film Line
Reference Numbers
UM - 3284Product
Dolci 3 Layers Cast Film LineYear Of Manufacture
1995Location
Europe
- No. of layers: 3
- Film structure: ABC layers distribution: 15/70/15 or 20/60/20 from 700 to 800 Kg/h.
- Material: Stretch film
- Width: 2000
- Extruder1 name: A
- Screw diameter: 90
- Motor power: 123 KW
- Dosing unit: Gravimetric
- Extruder2 name: B
- Screw diameter: 160
- Motor power: 301 KW
- Dosing unit: Gravimetric
- Extruder3 name: C
- Screw diameter: 90
- Motor power: 123 KW
- Dosing unit: Gravimetric
- Head automatic: Yes
- Head internal deckling: No
- Head notes: chill roll: 2500 mm, 1 diameter 800 mm, 2 diameter 320 mm Edge trims grinding and recovery system
- Take off web guide: Erhartdt-Leimer brand SG 4101 type
- Rewinder width: 2300
- Rewinder automatic: Yes
- Rewinding type: Surface
- Rewinder reels diameter max.: 500

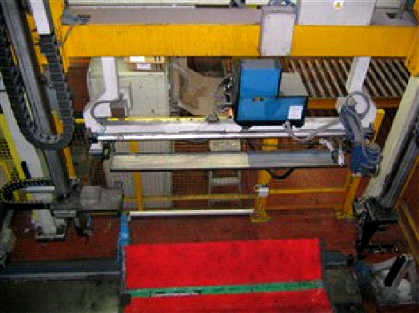

- Automatic handling system for shaft automatic packaging cardboard cores and finished rolls
(For images, please see next pages)
