For Sale - UM - 3554 - Killion 8" Wide Cast Film Lab Chill Roll Stand

Specification

Reference Numbers

UM - 3554

Product

Killion 8" Wide Cast Film Lab Chill Roll Stand

Location

USA

Product Details

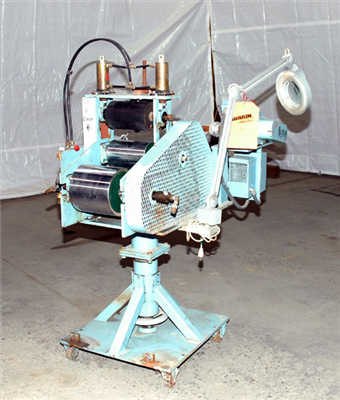

Killion 8" Wide Cast Film Lab Chill Roll Stand consists of:
- (1) 8" wide x 8" diameter chrome plated chill roll cored
- (2) 5" diameter x 8" wide pull rolls, (1) rubber, (1) metal, pneumatically adjustable, driven by a 1/2 HP 180 Volt DC gear motor with a Bronco drive.
- Unitized single turret wind driven by a 1/4 HP, 90 Volt, 1725 RPM DC gear motor.
- Also includes (1) 6" wide vertical cast film die. Mounted on a carbon steel base on casters.

(For picture, please see next page)
