For Sale - UM - 3739 - OMAM 5 Layer Cast Film Line
Reference Numbers
UM - 3739Product
OMAM 5 Layer Cast Film LineYear Of Manufacture
1993Location
Europe
- Material: PP/Barrier
- Width: 1,750 mm
A) Extruder1 name: A
- Screw diameter: 70 mm
- Motor power: 79 KW
B) Extruder2 name: B
- Screw diameter: 70 mm
- Motor power: 79 KW
C) Extruder3 name: C
- Screw diameter: 70 mm
- Motor power: 79 KW
D) Extruder4 name: D
- Screw diameter: 60 mm
- Motor power: 42.5 KW
E) Extruder5 name: E
- Screw diameter: 60 mm
- Motor power: 42.5 KW
- Head automatic: Yes
- Head internal deckling: No
- Head thickness control system: Thickness control by Measurex 2040
- Head notes:
a. "Feed-block: Cloeren a 5 vie + distributor with inversion layers
b. Video thermoregulation by supervisor
- Rewinder type: Recycling edge trim by Croci and Muchy
- Rewinder automatic: Yes
- Production speed: 240 m/min.

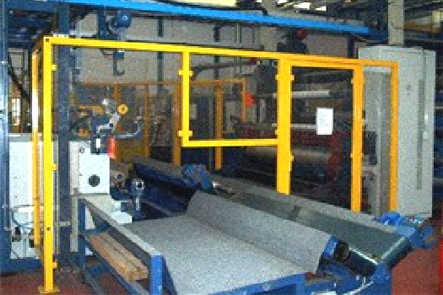

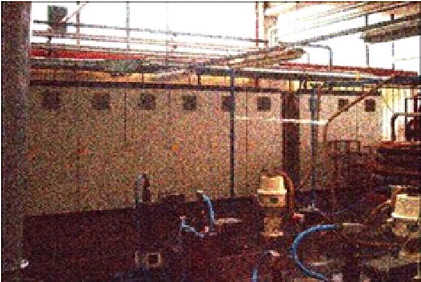

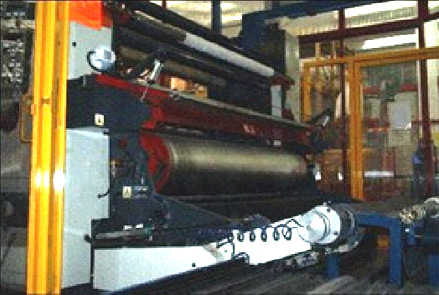

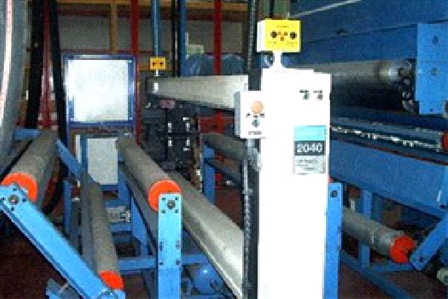

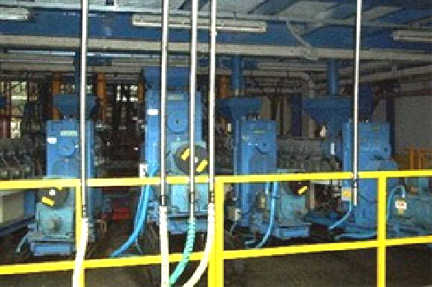

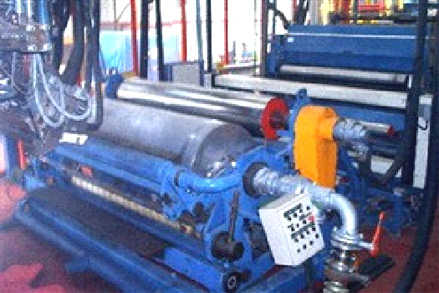

(For images, please see next pages)
