For Sale - UM - 3819 - Sumitomo 55 ton Injection Moulder

Specification

Reference Numbers

UM - 3819

Product

Sumitomo 55 ton Injection Moulder

Year Of Manufacture

1997

Location

USA
Product Details

Model: SG50M-H/C110
- No. of machines: 2
- Tonnage: 55 Tons
- Shot Size: 1.3
- Distance Between Tie Bars: 12.20" x 12.20"
- Platen Size: 17.91" x 17.91"
- Clamp Style: Toggle
- Min/Max Mold Space: 6.3"/13.78"
- Min/Max Opening Stroke: 5.11"/9.84"
- Dimensions (L x W X H): 12'5" x 3'3" x 5'5"

Equipped With:
- N-V control, air eject, hydraulic ejector interlock
- Cavity vent N2 charge kit
- Terminal strip robot interface printer port
- Moving platen supports oil level monitor
- The shot size can be upsized to 2.1 oz.
- 39,589 Hours

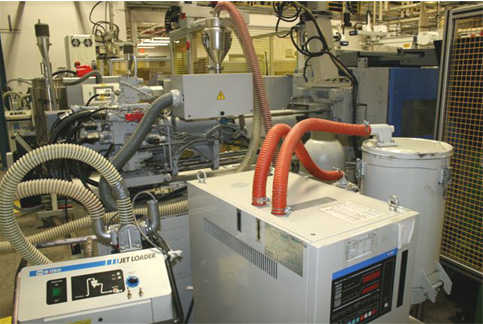

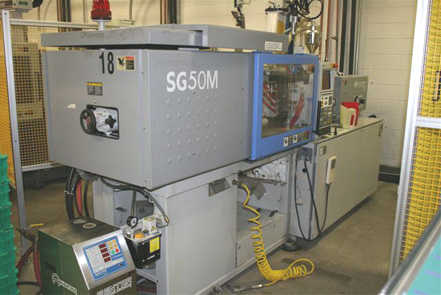

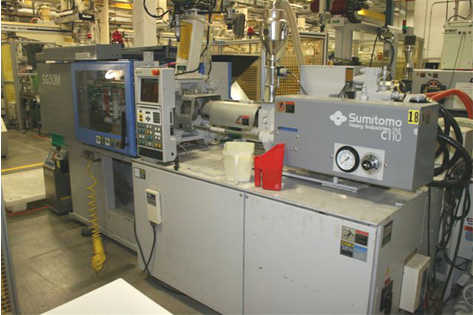

(For images, please see next pages)
