For Sale - UM - 4057 - Ferromatik 125 ton Injection Moulder

Specification

Reference Numbers

UM - 4057

Product

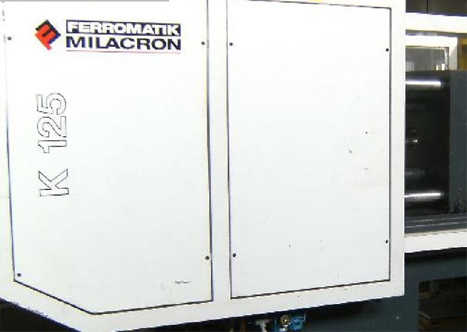

Ferromatik 125 ton Injection Moulder

Year Of Manufacture

1995

Location

Germany
Product Details

Type: K 125 S-2F
- Screw size: 50 mm
- Injection shot weight in Polysterol: 268 g
- Clamping force: 1250 KN

INJECTION UNIT - HORIZONTAL:
- Screw size: 50 mm
- Max. swept volume: 315 cm3
- Injection shot weight in Polysterol: 268 g/PS
- Injection pressure: 1,504 bar

INJECTION UNIT - VERTICAL:
- Screw size: 40 mm
- Max. swept volume: 151 cm3
- Injection shot weight in Polysterol: 128 g/PS
- Injection pressure: 1,322 bar

CLAMPING UNIT:
- Tie bar distance: 470 x 470 mm
- Mould height min.: 450 mm
- Opening stroke: 600 mm

CONTROL:
- Microprocessor control: IQT 6
- Screen text: Deutsch / German
- Manual: Deutsch / German

EQUIPMENT:
- Screw suck back: Yes
- Air valve: 2x

Other information:
- Pump drive power: 22.0 KW
- Total connection power: 36.7 KW
- Total weight: 5,400 kg
- Dimension (L x W x H): 5.5 x 1.7 x 2.4 m

(For picture, please see next page)
