For Sale - UM - 4650 - Husky 600 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 4650

Product

Husky 600 Ton Injection Moulding Machine

Year Of Manufacture

1995

Present Condition

In good condition

Location

USA

Product Details

Model: SX600340P / 120E120
- Clamp force: 600 metric tons
- Clamp mechanism: hydro/mechanical
- Platen size: 56.1" x 56.1" (1426 mm x 1426 mm)
- Distance between tie bars: 40.2" x 40.2" (1020 mm x 1020 mm)
- Clamp stroke: 35.4" (900 mm)
- Mold shut height: 9.8" to 37.4" (250 to 950 mm)
- Daylight maximum: 72.8" (1850 mm)
- Screw diameter: 4.72" (120 m.m.)
- Screw L:D Ratio: 25:1
- Plasticizing rate: 1263 pounds (573 kilograms) per hour
- Pump motor: 150 HP
- Shooting pot diameter: 4.72" (120 m.m.)

Package includes the following:
- Husky (3) Position Robot
- Control package- Siemens 115U Microprocessor
- Equipment has been very well maintained

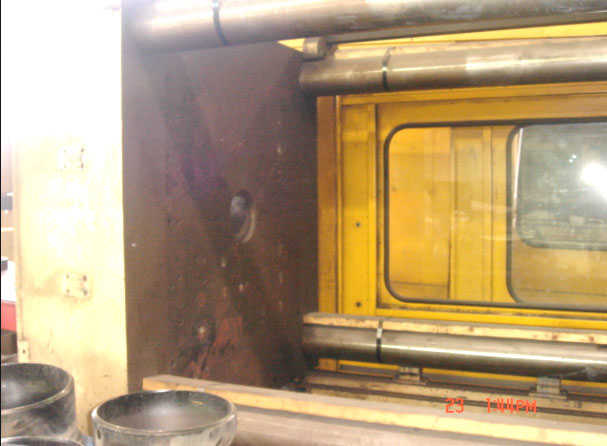

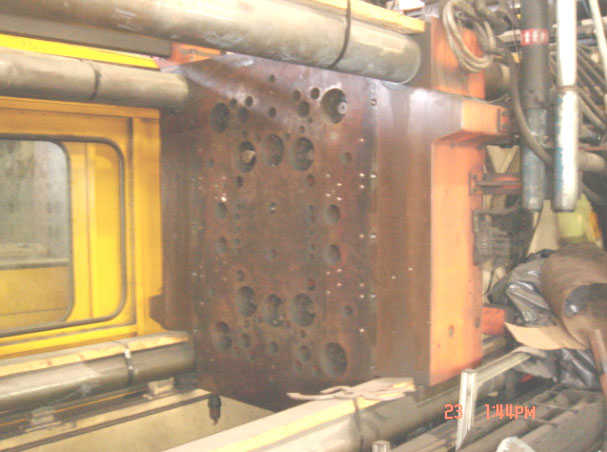

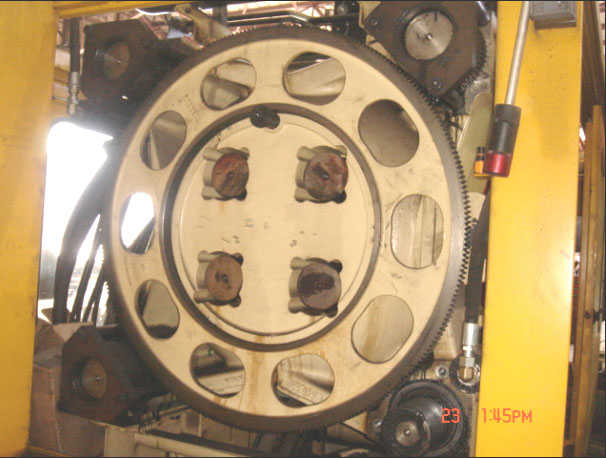

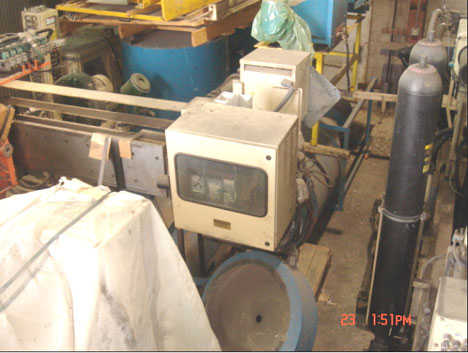

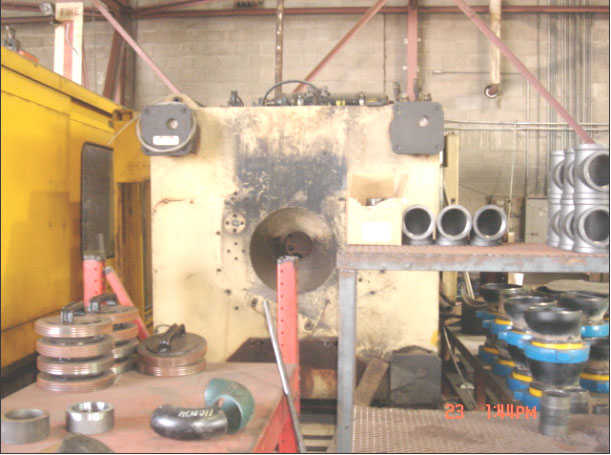

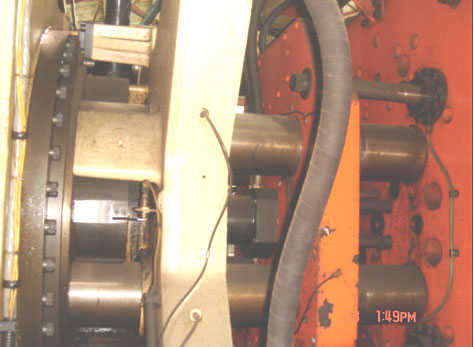

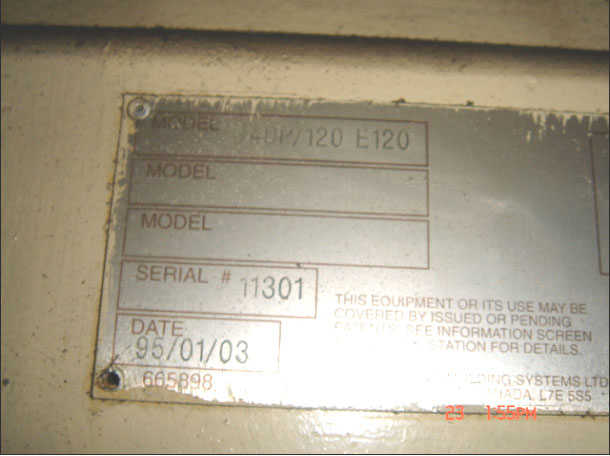

(For images, please see next pages)
