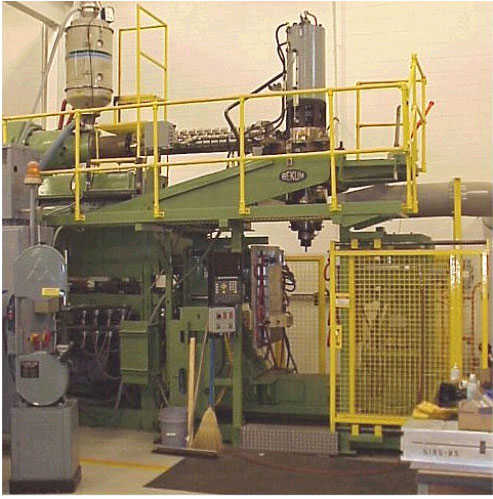

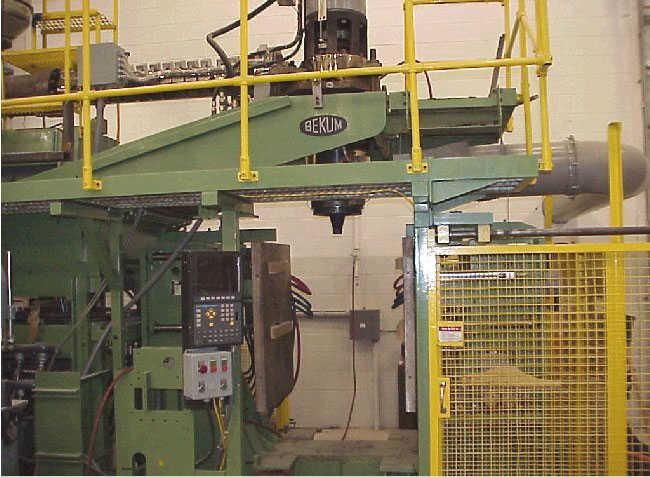

For Sale - UM - 4824 - Bekum BA20 Single 10 lb Head Blow Molder

Model BA20/S101
- Complete retrofit in 2002
- Maco 6000 control system

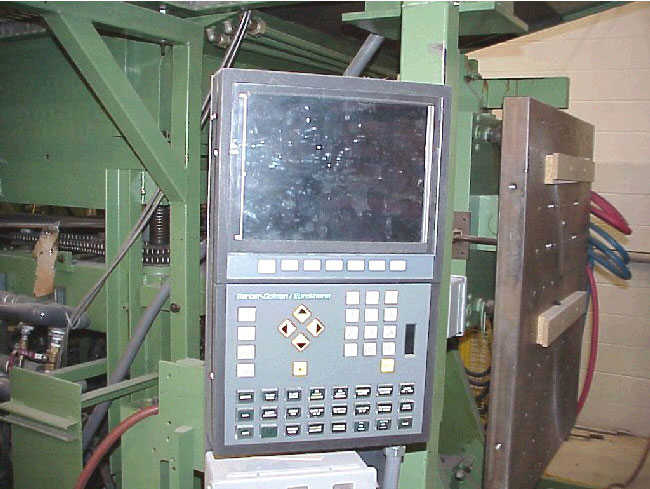

- Maco Optima Monochrome display with 24 function keys
- Machine mount with conduit fitting
- 12 slot rack with power supply and data handler
- 48AC inputs and 30DC outputs (48 total available)
- 2 channel Parison card (for programming & accumulator)
- 6 analog inputs, 4 analog outputs
- Mold recipe storage (16) Plus cartridge port - RS 232 printer interface port
- Real time clock and event detect
- Multi processor and mulit bus control

Peripheral Hardware
- Operator push button station with switches
- 120 VAC tracking filter
- 1) 24VDC Power supply
- Flashing beacon alarm lamp
- Installation hardware complete
- Servo amplifier card - 4 channels per card

Parison Programming
- 100 Step Parison Programming
- Real time digital readout of all process variables
- Line graphs screen-plots all process variables

Tooling
- 5 different sets of head tooling
- Includes universal water cool manifold
- Can be used for prototype and production applications

General:
- Single 10lb. Head
- Accumulator Head
- DC motor
- Platen size: 21.83" x 21.83"
- Extruder size: 4" approx.
- Material run: PP, PE and Sanoprene

(For images, please see next pages)
