For Sale - UM - 4935 - Lyle Thermoforming Machinery

Specification

Reference Numbers

UM - 4935

Product

Lyle Thermoforming Machinery

Year Of Manufacture

1999

Location

USA
Product Details

Model: 140FM
- 40"W X 42"L max mold size
- 45 max CPM stroke speed
- 9" platen stroke
- 80 Tons forming pressure
- 43" max sheet width
- 160" Long oven
- 7" max draw
- 25.125" minimum daylight platen closed
- 15 1/16 sheet to top of platen
- 10 1/16 sheet to bottom of platen

Lyle Model 140p2 Trim Press:
- 30 Ton working cap
- 43" max sheet size
- 10 hp drive, 80 CPM
- 4, 5, 6, 7.5, 9, & 10.5" stroke adjustment
- 12.25"H X 40.5" width stationary platen opening

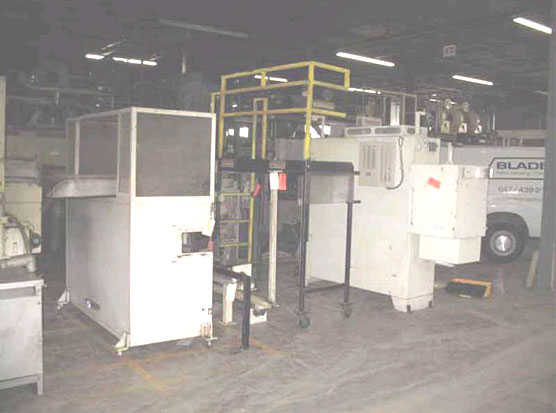

(For images, please see next pages)
