For Sale - UM - 5010 - Hemscheidt HPM 1000 Ton Injection Moulding Machine
Reference Numbers
UM - 5010Product

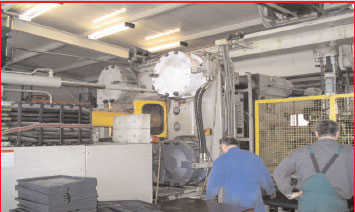

Hemscheidt HPM 1000 Ton Injection Moulding MachineYear Of Manufacture
1995Location
Germany
- Controls: PLC
- Tie bar distance: 1.150 x 1.150 mm
- Platen distance: ax. 2.230 mm
- Platen size: 1.700 x 1.700 mm
- Mould opening: 500 - 1.250 mm
- Mould height: in 400 / max. 980 mm
- Screw diameter: 100 mm
- Shot weight: ax. 2.800 gr.
- Core pulling: 2
- Cooling connections: 12
- Capacity pump: 135 kW
- Capacity heating: 110 kW
- Floor space: 10, 7 x 2,5 m
- Net weight: 57.0 to.
- Ölfüllung / Oil filling; 850 tr.

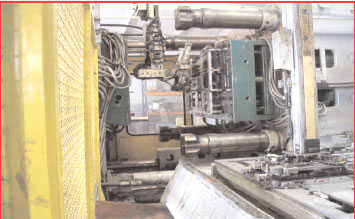

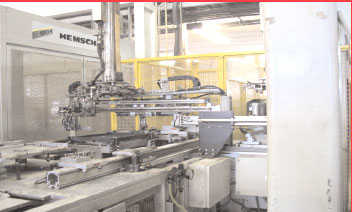

Handling manipulators:
- Take-out Robot
- Assembly Robot
- Stacking Robot
Mould:
- Article: collapsible crate
- Article weight: 1.030 gr.
Dimensions
- Inside: 450 x 325 x 230 mm
- Outside: 475 x 345 x 235 mm
- Hot runner: HASCO
- 2 cores
- Mould height min: 500 to 1250 mm
- 400 /max 980, robot for 32 ltr,
- Boxes and die for32ltr.
- Folding boxes available
Boxes Production 32 leter:
- Shot w.PS appr: 2, 800, gr
- Article Weight: 1,03gr
- Appr:
- Pieces: 120 to 180 pices
- 2 cores
- Mould height min: 500 to 1250mm
- 400/max: 980 robots for 32 leter
- Boxes
- Die for32 leter

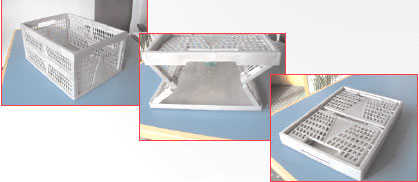

- Collapsible crates
- Weight of crate: 1030 gr
- Capacity approx: 140 to 180 Boxes/h
(For images, please see next page)
