For Sale - UM - 6189 - ANDREOTTI 8 Colour Rotogravure Printing Machine

Model: ROTOSTAR
- Trolley system: 16 trolleys
- print possibilities: 7 colours + lamination in line
- manufacturer: ANDREOTTI
- Computer supervision: No
- Web width: 1400
- Print width: 1250
- Print repeat: 400-900
- Drying specifications:
a) Double hoods: 1&2, mm4000
b) Singledryer hoods: 3,4,5,6 , mm2000
c) Double dryer hoods on print units: 7&8 mm 4000
d) All units with independent ventilation
- Drying heat source
- Diathermic oil heater with gas burner (1.000.000 Kcal), year 2006
unwinder type
- Non stop turret unwinder: reel unwinder diameter max: 1200
- Rewinder type
- Non stop central-surface type rewinders
- Reel rewinder diameter max: 1200
- Has camera: Yes
- Register control: 1 color register control model CR33 grafikontrol year 2007
- Vyscosimeter: 8 automatic viscosity control, year 2007
- Ink pumps: 16
- Cylinders number: 500

Note: 1 coating unit for reverse side or solvent lamination application (8)
- 1 exiting driving calendar
- 1 non stop turret unwinder for solvent lamination application (8), 600 mm
- 1 control system
- Fife web guiding for non stop turret unwinder
- 4 pneumatical expanding shafts, 152 mm
- Fife web guiding non stop turret unwinder for solvent lamination application
- 9 flameproof electric pumps
- 10 doctor blades
- 16 speedwell sleeves
- Fire alarm system Co2, year 2007
- Solvent system
- Air system for speedwell sleeves changing
- 8 diathermic Oil Thermal with temperature control year 2007
- Web viewing and control of the printing quality genius BST year 2007
- 1 soundproofed wall
- Slitter rewinder TLTC

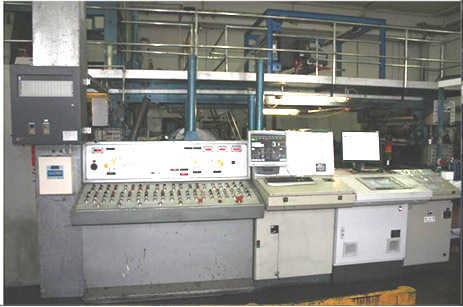

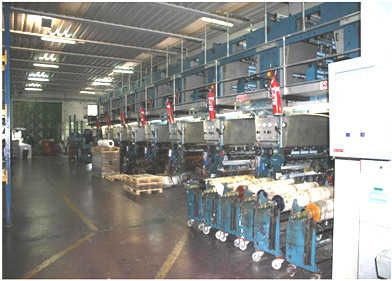

(For images, please see next pages)
