For Sale - UM - 6696 - 3 Layer Cast Film Extrusion Line with 78" Die
Reference Numbers
UM - 6696Product
3 Layer Cast Film Extrusion Line with 78" DieYear Of Manufacture
1991Location
USA
Used Egan 3 layer cast film line

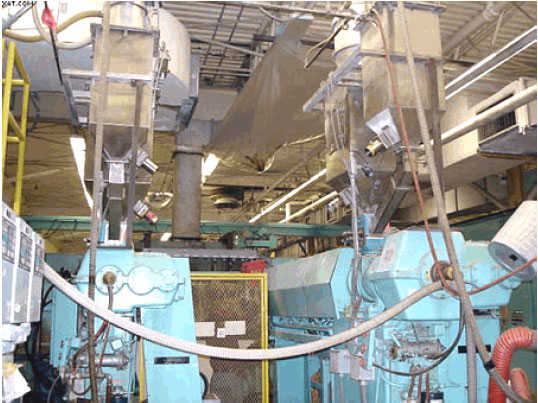

- Equipped with K-Tron Vertech gravimetric feed resin system (4+2 blenders)

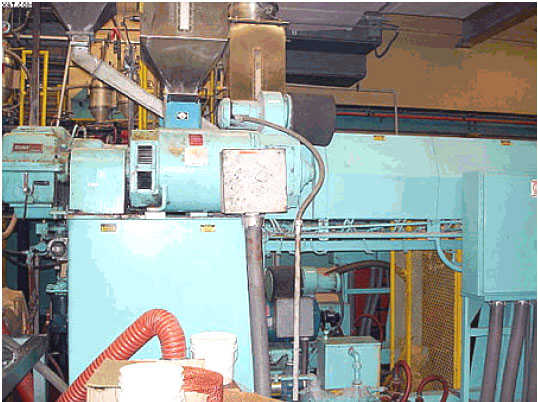

- Two (2) Egan extruders (2.5" x 32:1, 60HP and 3.5" x 32:1, 125HP)
- Two (2) Beringer hydraulic screen changers (model SL-35, model SL-25)
- Two (2) polymer melt pumps with DC drives
- Egan 3-layer feed block
- 78" EDI auto-bolt film die (new in 1999, 0.040 std gap)
- Egan 80" 3-roll casting station (16" diameter x 80" rolls)
- Two - 2 roll Kuster calendars (68" face x 14" rolls)
- Ohmart beta gauge
- 84" Eriez EZ5 Metal Detector (new in 2003)
- Carrier chiller
- 36kw Sterlco hot oil unit
- 75 kw HTT hot oil unit
- Systronics vision system (2 cameras, 71" operational width)
- 36" maximum diameter Egan turret rewind (3" shafts)
- And line controls and accessories.
- Web Width: 1626 mm (64 in)
- Size(s): 2.5, 3.5
- Rewind Type: Turret
- Extruder(s): Egan
- L/D: 32:1
- Chill Roll Diameter: 406 mm (16 in)
- Die: EDI Auto Die
- Die Width: 1981 mm (78 in)
- Max. Diameter: 914 mm (36 in)
- In Operation: No
(For images, please see next pages)
