For Sale - UM - 7181 - Nissei ASB-650NH Injection Blow Molding Machine
Reference Numbers
UM - 7181Product

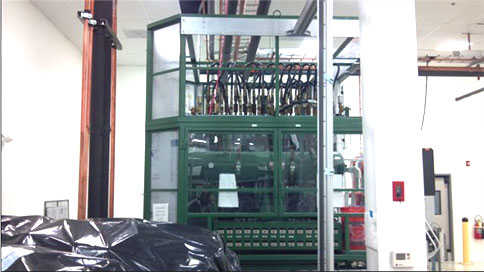

Nissei ASB-650NH Injection Blow Molding MachineYear Of Manufacture
1992Location
USA
- Injection unit: FS-250
- 18 ounce
- Screw diameter (mm): 75
- Injection capacity (cm3 / shot): 1060
- Injection rate (cm3 /sec.): 393
- Injection pressure (kg / cm2): 1317
- Screw stroke (mm): 240
- Screw speed (mm): H.T O-155 / L.T O-227
- Injection station clamping force (kg)
- Upper / Lower: 49480 / 50830
- Clamping stroke (mm)
- Upper / Lower: 345 / 275
- Heating station heating core stroke (mm): 300
- Heating core cylinder diamamiter (mm): 80
- Heating pot stroke (mm): 185
- Heating pot cylinder diamamiter (mm): 100
- Number of heating zone / parison: 3
- Stretch / blow station
- Stretch stroke (mm): 200
- Stretch cylinder diamamiter (mm): 100
- Stretch force (kg): 775
- Blow core stroke (mm): 300
- Blow core cylinder diamamiter (mm): 125
- Blow core clamping force (kg): 1215
- Blow mold clamping force (kg): 49500
- Blow mold clamping stroke (mm): 490
- Bottom mold clamping force (kg): 6600
- Bottom mold clamping stroke (mm): 60
- Blow mold platen size (W x H) (mm): 1040 x 310
- Bottle eject station ejector stroke (mm): 185
- Ejector cylinder diamamiter (mm): 80
- Approximate 1500 bottles / hr
(For images, please see next pages)
