For Sale - UM - 7249 - Demag 325 ton Injection Molding Machine

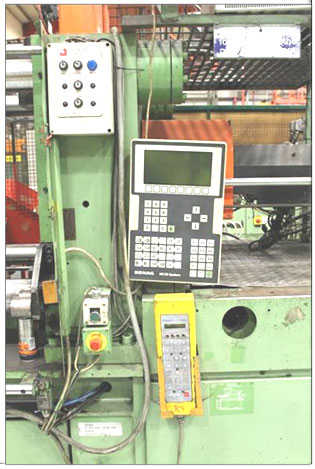

- Control: DEMAG NCIII
- Screw diameter: 60 mm
- L / D ratio: 19, 7
- Without a differential circuit: 1870 bar
- With differential circuit: 1530 bar
- Displacement: 635 cm3
- Shot weight (PS): 570 g
- Opening stroke: 600 mm
- Mould height min: 330 mm
- Mould height max: 770 mm
- Platens Max (Daylight): 1370mm
- Tie bar spacing (H x V): 630 x 630 mm
- Platens size: 940 x 940 mm
- Ejection force: 70 KN
- Retraction force: 39 KN
- Metering sleeps Max: 225 mm
- Metering max: 500 mm
- Nozzle immersion depth (SVO): 50 mm
- Nozzle contact: 110 KN
- Install cylinder heating power: 18, 8 KW
- Full hopper: 110 l
- Oil tank: 580 l
- Pump unit: 37/45 KW
- Instill total power: 56/64 KW
- Dry cycle number
- Net weight closing leg unit: 9.200 KG
- Net weight spray unit: 5.000 KG
- Machine Weight: 14.200 KG
- Dimensions: 7.8 x 1.85 m
- Fixing Holes: M24; Cores: 2
- Hopper weights: 4.309 KG
- Pressflow Robotic Un loader with Control Unit JOHNS Mould Clamping System,
- MATTEC Shift Control Panel DEMAG LET 6

(For images, please see next pages)
