For Sale - UM - 7325 - Del Maglio Slitter Rewinders

Specification

Reference Numbers

UM - 7325

Product

Del Maglio Slitter Rewinders

Year Of Manufacture

2003

Location

Europe

Product Details

Model: AZ2 UT
- Working width (mm): 1300
- Speed: 500

Unwinder type: Shaftless unwinder with hydraulic lift arms
- Max diameter reel unwinder: 1200
- Max diameter reel rewinder: 650

Rewinder description:
- Center surface driven
- Min slit width: 55

Additional informations:
- Unwinder shaft diameter 152 mm
- Both direction rewinder
- Rewinder shafts 70/76 mm
- Unwinder with brake and dancing roll platform on floor oxy.dry
- Circular blades
- 2 Antistatic bars
- 7 Friction rewinder shafts and 7 counter braces
- Banana roll before cutting
- PC

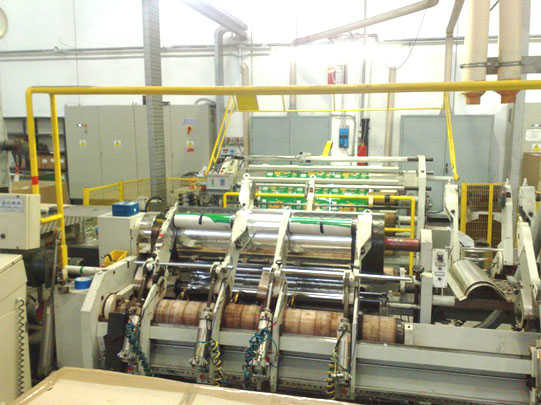

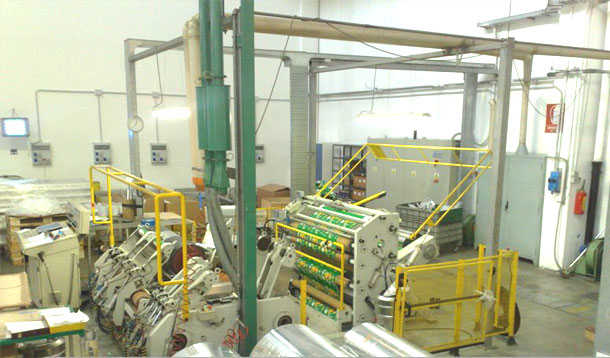

(For images, pleses see next pages)
