For Sale - UM - 7447 - 1700 mm Wide Bandera Virginio Mai PMMA ABS Sheet Extrusion Line

- 80 mm extruder, 1600 mm Simples die, 2 - 7 mm thickness.
- Complete line 1987.

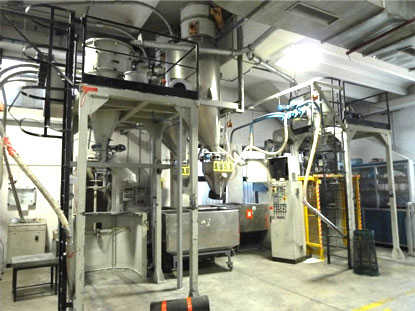

- Plasmec 1000 liter batch gravimetric 4 component blender.
- Bandera 80 mm single screw extruder
- 35 D with fan cooled barrel
- Vented with large vacuum pump for material drying model Hydrosys 5 Travaini.
- Stainless steel condenser.
- Screw refurbished in 2011
- 75 KW DC motor.
- Cofit CL 80 manual screen changer. Maag model 45SP gear pump with dc motor
- Static mixer.
- 1600 mm wide Simples die with 2 - 7mm die gap.
- Spare 1200 mm wide Simples die with 2 - 7 mm die gap.
- 1700 mm wide Virginio Mai vertical 3 roll polishing stack with 3 x 340 mm diameter rolls. (sone spare roll)
- Pnuematic nip
- 3 x Dc motor
- Individual roll motors and drives
- Oil rolls temperature units, max 140 degrees C. Digital nip position read out.
- Temperature controlled chrome rolls for sheet support from the 3 roll calender
- Water heated up to 140 degrees C.
- Adjustable polyethylene film masking unit for both sides of the sheet
- 1700 mm wide 2 roll haul off with DC motors. Pneumatic nip
- 3 blade motor driven longitudinal saws with dust extraction
- Transverse traveling saw with dust extraction. Digital control
- Vacuum cleaning plate after cross saw
- Output conveyor with sheet stacker incorporating scales
- Was running PMMA, ABS, PS, SAN and PETG. - Outputs up to 200 kg / hr

(For images, please see next pages)
