For Sale - UM - 7553 - 46" Davis Standard Three Roll Vertical Roll Stack Sheet Line
Reference Numbers
UM - 7553Product
46" Davis Standard Three Roll Vertical Roll Stack Sheet LineYear Of Manufacture
1999Location
USA

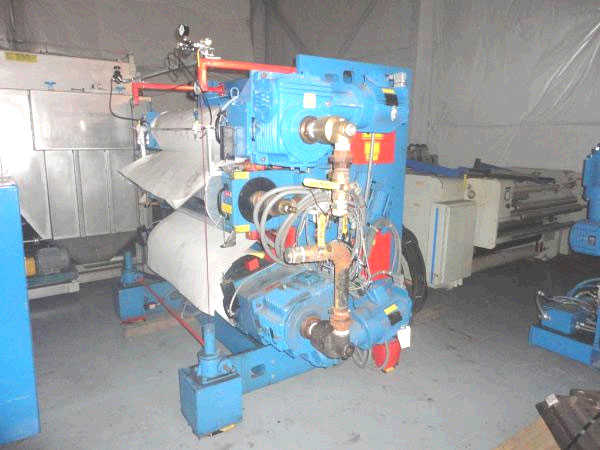

One (1) used 46" Davis Standard three roll vertical roll stand sheet line with
- (1) 12" diameter x 46" roll face
- (2) 18" diameter x 46" roll faced rolls, chromed, cored with rotary unions
- Individually driven rolls with 3 hp
- 230 / 460 volt motors
- Hydraulically adjusted top and bottom rolls with 7.5 hp
- Hydraulic power pack
- Temperature control skid with cooling conveyor
- Pumps and heat exchangers
- 8' diameters x 46" faced rubber pull roll assembly driven by 3 hp
- 230 / 460 volt motor drive
- NDC systems thickness gauge
- Allen Bradley panel view 550 operator interface touch screen
44" wide EDI flexlip sheet die
Model: UltraFlex H-100, flexible upper lip, removable lower lip, back center feed
Vulcan single turret two position winder
Model: TWQ422, 52" wide, 3" cores, up to 24" roll diameter
(For images, please see next pages)
