For Sale - UM - 7902 - Laem System Slitter Rewinder
Specification
Reference Numbers
UM - 7902Product
Laem System Slitter RewinderYear Of Manufacture
2000Location
EuropeProduct Details
- Working width (mm): 1700
- Materials: PET (FROM 12 TO 40 micron) OPP (from 12 to 40 micron)
- Speed: 600 m/min
- Unwinder type: Single Shaft
- Max diameter reel unwinder: 1000
- Rewinder type: Center driven with independent arms
- Max diameter reel rewinder: 1000
- Rewinder description: Two motorized arms BD/10M . Center driven by brushless motor;
- Min slitter width: 300
- Knives: Longitudinal cuts, with razor blades Helios A2/40 ; Max cuts 5
Additional information's:
- Max weight unwinder: 750 Kg
- Max weight rewinder 1200 kg. diameter
- unwind & rewinding cores: 76 mm & 152 mm
- Installed electric power: 60 KW

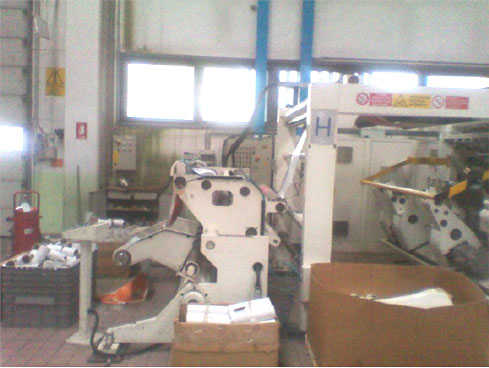

(For images, please see next pages)
