For Sale - UM - 7918 - 44" Wide Davis Standard Sheet Extrusion Line
Reference Numbers
UM - 7918Product
44" Wide Davis Standard Sheet Extrusion LineYear Of Manufacture
1994Location
USA

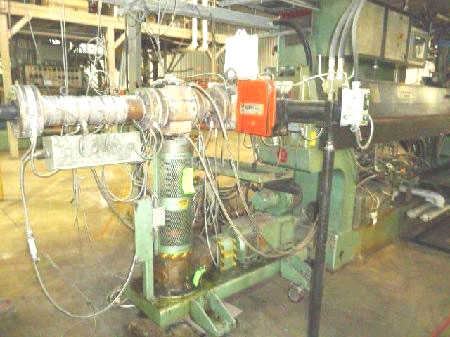

Used 44" wide Davis Standard sheet extrusion line including the following:

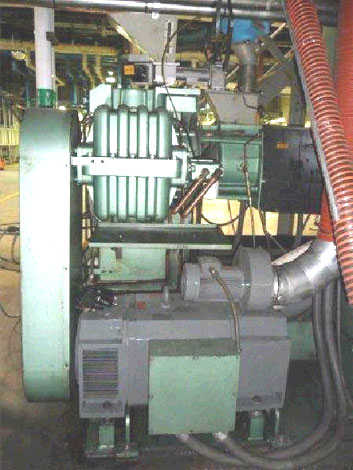

- 4.5" Davis Standard 30/1 l/d non-vented extruder driven by 300 HP Dc motor with Allen Bradley model 1397 drive.
- 230/460 Volt ac input, has 17.3/1 gear reduction rated at 304 HP and 100 rpm output.
- Model 45IN45HT
- 1.55 Service factor
- Has electrically heated water cooled barrel with 58" centerline height
- Extruder includes Allen Bradley touch screen interface for extruder heat control and operation
- Includes 4.5" Beringer screen changer with hydraulic pump
- Has 15 hp melt pump Model LS56/56
- Downstream includes Davis standard 44" wide x 12" x 18" x 18" gear driven chill roll stack,
- Each roll equipped with rotary union, hydraulic clamping action on rolls including hydraulic pump
- Includes operator controls with drives for chill rolls and pull rolls
- Includes temperature control system with pumps and heaters for chill rolls
- Downstream also includes Ohmert and NDC thickness gauges
(For images, please see next pages)
