For Sale - UM - 7954 - 6" and 8" Pelletizing Line, Gala 7

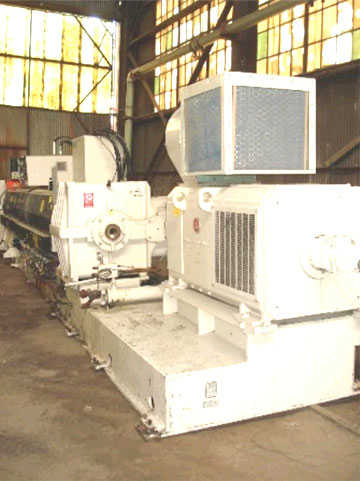

1) 6" Pelletizing Line, Gala 7

Model: 60IN60R
- One (1) used pelletizing line consisting of One (1) used 6" Davis Standard extruder
- 38:1 L/D, electrically heated, water cooled, jacketed feed section, on board circulation system, 600 HP DC motor with SCR controller, top vented with plug, 13.24:1 gearbox ratio, skid mounted with control panel with 8 barrel zones, 1 screen changer zone and 8 die zones, Davis Standard, new 1995, One (1) used 6" Berringer hydraulic slide plate screen changer with dual breaker plates and power pack, and One (1) used Gala underwater pelletizing system, Gala 7 pelletizing head with 15 HP 208-230/460 volt 3540 rpm motor, with Gala 140 GPM water system with pump, heat exchanger and heater, with Gala spin dryer model 52 VDW, with blower and control panel.
- Size: 6

2) 8" Pelletizing Line, Gala 7

Model: 8035 D-H
- One (1) used pelletizing line consisting of One (1) used 8" diameter Egan Extruder
- 32:1 L/D ratio, vented barrel, electrically heated, water cooled, 11.73:1 gearbox ratio, 600 HP DC drive with Safetronics SCR, Updated temperature control panel with 6 barrel zones and 1 die zone
- One (1) used 8" Beringer hydraulic screen changer with 2 hp hydraulic power pack and One (1) used Gala 7 underwater pelletizing system with 15 HP cutting head, with die plate and water box, with Gala 250 gpm model TWS250 tempered water system with Gala model 52VDW spin dryer.

(For images, please see next pages)
