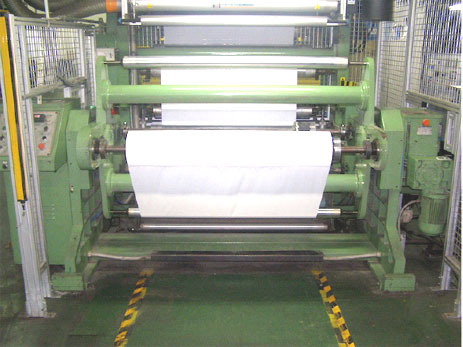

For Sale - UM - 8125 - 1450 mm Uteco Duplex Laminator Machine

Model: 140
- Type: Rainbow 503
- Duplex laminator coating dry foreseen for additional register coating cold seal and solvent less trolley Automatic lubrication system for drying tunnel rolls FIFE web guide on primary and secondary unwinder
Foreseen for insertion of coating cylinder at variable development 450 - 850 mm
- Max web width: 1450 mm
- Max useful width: 1300 mm
- Max mechanical speed: 300 m/min
- Monolithic coating cylinder diameter: 170 mm (foreseen to use cylinder with shaft)

Unwinder 1 and 2: Automatic turret type
- Max reel diameter 800 mm
- Shaft 76 mm, 152 mm
- Tension control by dancer roll
- Tension range 3 - 30 kg

Rewinder: Automatic turret type
- Max reel diameter: 800 mm
- Shaft 76 mm, 152 mm
- Tension control by dancer roll
- Tension range 5 - 50 kg

Register control
- ZELO model: Taj 100

Corona treater
- No. 2 by Ferrarini & Benelli
- Type POLIMETAL/200/2G3/CERAMIC
- N. 2 generator type GTS/10 KW

Drying tunnel
- No. 3 sections with independent thermoregulation
- Heating by diathermic oil
- Web treading 10,2 mt

No. 3 Temperature controlled drums
- Laminator NIP group development 760 mm
- Out feed lamination development 1110 mm
- Draw group secondary unwinder development 630 mm

- Machine is old but in perfect condition and in operation, it can be seen
in working condition anytime.


(For images, please see next pages)
