For Sale - UM - 8190 - Battenfeld 3 layer Cast Film Extrusion Line
Reference Numbers
UM - 8190Product
Battenfeld 3 layer Cast Film Extrusion LineYear Of Manufacture
2003Location
Europe
- Film structure: ABC - A15% - B60% - C25%
- Material: Stretch
- Film width (mm): 2000
- Speed (m/min): 650 mt/min
- Output (Kg/hr): 1200 Kg/hr
Extruder 1 Layer ref: A
- Screw diameter: 75 mm
- Description: Gravimetric dosing unit 3 components, Motor AC
Extruder 2 Layer ref: B
- Screw diameter: 150 mm
Description: Gravimetric dosing unit 3 components, Motor AC
Extruder 3 Layer ref: C
- Screw diameter: 75 mm
Description: Gravimetric dosing unit 3 components, Motor AC
Head description: Automatic head; type Cloren, Feed block Cloren
- Chill roll unit: Yes
- Thickness controll system: Infrared NDC FG710
- Web guide: Fife
- Rewinder description: Turret type 1027S
Additional information's: Width: 2000 mm (4 x 500 mm)
- Discharge reels system
- Depozit cardboard cores
- Recovery system with selvedge by grinding mill

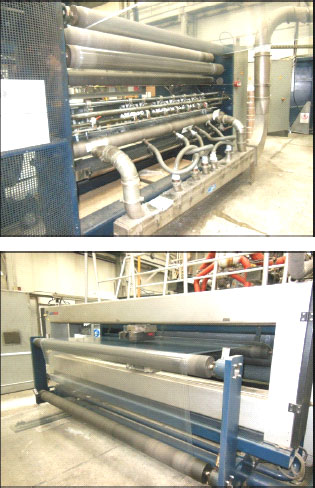

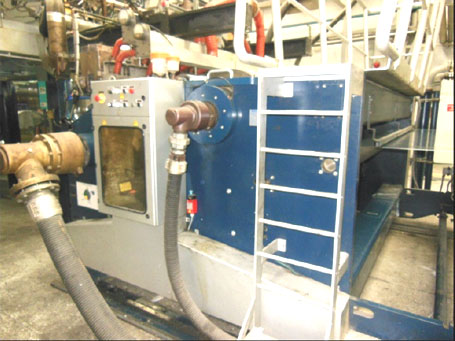

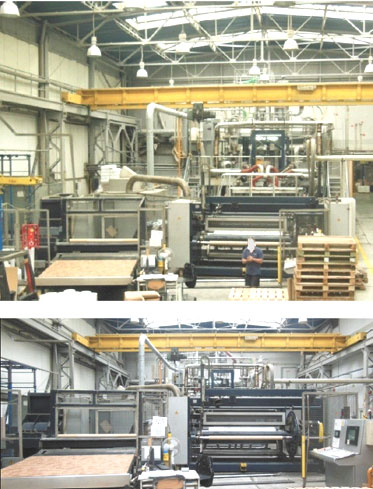

(For images, please see next pages)
