For Sale - UM - 8304 - TCE 3 Layer Stretch Cast Film Extrusion Line

Model: 2000/130-65-65
- Film structure: ABC from 10%/80%/10% to 20%/60%/20%
- Material: stretch film 11-30 my (LLDPE)
- Film width (mm): 2000

Extruder 1 Layer ref: A
- Description: GRAVIMETRIC 4 PIOVAN COMPONENTS COMPLETE WITH PNEUMATIC GRAIN SUCTION SYSTEM
- Description: GRAVIMETRIC 4 PIOVAN COMPONENTS COMPLETE WITH PNEUMATIC GRAIN SUCTION SYSTEM

Extruder 3 Layer ref: : C
- Description: GRAVIMETRIC 4 PIOVAN COMPONENTS COMPLETE WITH PNEUMATIC GRAIN SUCTION SYSTEM
- Head description: EDI
- Die width (mm): 2600

Chill roll unit: die gap 0,1-0,8 mm, airknife 2700 mm; edge pinning; chill roll: width 2700 mm, diameter
960 mm; cleaning roller 150 mm
- Thickness control system: flex lip throe 91 thermo bolts; thickness measurement Electronic System with 2 scanning heads
Web guide: yes
- Rewinder description: Pope roller. hand rolls and jumbo. Pope roll diam 730 mm;Possibility without glue on core.Automatic core feeding-finished reel handling; Cores 50mm and 76mm

Additional information's: OUTPUT ON 15MY STRETCH 800-850 kg / hr; OUT PUT ON HAND REELS: 500-770 kg / hr; SPEED 450 M/MIN; THICKNESS TOLLERANCE 2 SIGMA 0,4/0,6; Fully automatic system for finished reels handling. Hand roll are loaded automatically into boxes, these boxes are piled onto pallets. jumbo reels are loaded on pallets. Edge trim and refeeding system
throu satellite extruder.
- Machine can produce hand reels.

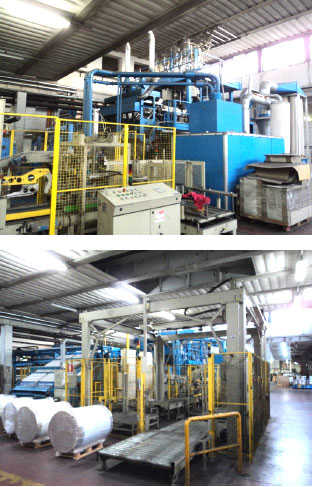

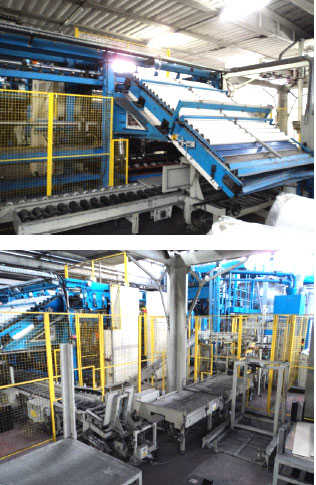

(For images, please see next pages)
