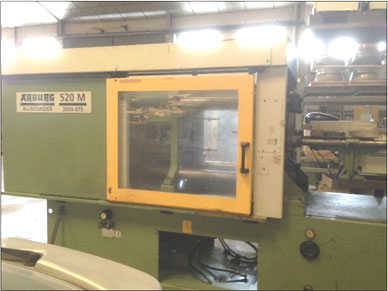

For Sale - UM - 8679 - Arburg 520 M-2000-675 Injection Molding Machine
Reference Numbers
UM - 8679Product
Arburg 520 M-2000-675 Injection Molding MachineYear Of Manufacture
1997Location
India
- Control: Multronica
- Screen text: English
- Operating hours: 62,895 hrs
Clamping unit
- Clamping force: 2.000 KN
- Size of mould platens (H x V): 715 mm x 715 mm
- Distance between tie bars (H x V): 520 mm x 520 mm
- Mould opening stroke: 650 mm
- Mould height min.: 250 mm
- Max daylight: 900 mm
- Hydraulic ejector - stroke: 225 mm
- Ejector force forward / backward: 65 KN
Injection unit
- Screw diameter: 60 mm
- Ls/D ratio: 16.5
- Injection pressure: 1400 bar
- Stroke volume: 508 ccm
- Shot weight, PS: 427 g
- Injection rate: 310 ccm
- Injection stroke: 180 mm
- Nozzle pressure: 60 KN
- Electric and Hydraulic Equipment
- Nominal capacity of pump motor: 30 KW
- Installed heating capacity: 18 KW
- Adjustable barrel heating zones: 6+1
- Reservoir capacity: 260 liter
- Dimensions und weights
- Dimensions of the machine ca: 5,36 m x 1,61 m x 1,95 m
- Total machine weight: 6.600 kg
Accessories
- 1 x Core
- Anti vibration pads
(For image, please see next pages)
